SATEL STAM-IRS Event reception system with integrated micro-server

Event reception system with integrated micro-server (with telephone or Ethernet reception card) and STAM-2 BASIC software

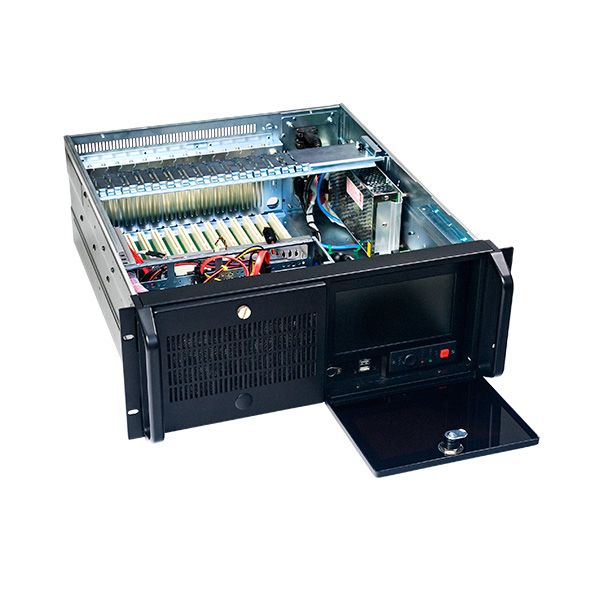

STAM-IRS is a STAM-2 monitoring station system, designed to function as a station server. It supports up to 17 event receivers: 14 telephone or Ethernet receivers installed in the PCI slots and 3 GSM modules connected to the COM ports. STAM-IRS has an integrated PC micro server with INTEL ATOM processor and is equipped with two fast and long-lasting SSD drives. The device features a small-sized 7” TFT LCD display for local server management. If necessary, it can also be connected to any monitor equipped with a DVI connector.

The STAM-IRS system has its own 13.8 V DC, 7 A buffer power supply, which can be connected as a backup to the 12 V external battery. The power supply is equipped with protection against overloads and short circuits. Its 19" rack housing allows it to be mounted in server and telecommunications rack cabinets.

STAM-IRS comes with the Embedded version of the Windows 7 operating system, which is installed and configured correctly with the STAM-2 client program. When purchasing, you must select the handset base board to be included in the delivery set: STAM-1 P telephone handset or STAM-1 PE Ethernet handset.

Description:

• management of up to 14+3 receivers: PSTN cards, TCP/IP cards and GSM modules
• integrated micro server based on INTEL ATOM platform and 2HD SSD
• 7" TFT LCD monitor for simplified local management of the server
• Built-in buffer power supply with the possibility of connecting an external battery for emergency power
• 19” server-type housing for installation in standard industrial rack cabinets
