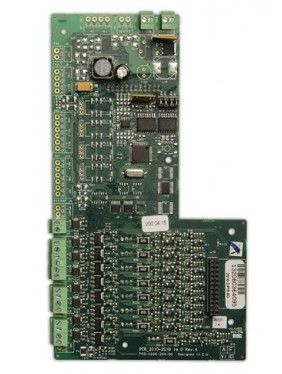

ARITECH FIRE 2010-2-PIB-8O Expansion module for 8 supervised outputs

Expansion module for 8 supervised outputs. Installing the module only inside a standard 2X series control cabinet

General Information
The 2010-2-PIB-8O peripheral interface module is used to expand the number of outputs available directly in a compatible analog addressed control panel. 2010-2-PIB-8O is a reduced variant of the 2010-2-PIB module and is the ideal solution for interfacing to other electronic devices. The module is designed for housing directly in the

Functionality
The 2010-2-PIB-8O peripheral interface module provides an additional 8 outputs for a compatible fire control unit. The module, powered directly from the control panel or through an external power supply, is able to provide a voltage of 24 VDC for each of the supervised outputs. The outputs are supervised for short circuit and open circuit conditions

Assembly and connection
The module can be installed directly on the front panel of a compatible fire detector in the format of a standard release 3 cabinet. There is no additional wiring for the connection. Removable clamps allow the connection of field devices. The direct connection of the module to an external power supply allows the system load to be distributed
