Eyeball IP Thermal 256x192 pxls and Visible 5MP, WD

SKILLEYE SEI-E7123TI-PAT-3 Eyeball IP Thermal 256x192 pxls and Visible 5MP, WD

MT Code: SKL_SEI-E7123TI-PAT-3
Manufacturer Code: SEI-E7123TI-PAT-3
Brand: SKILLEYE

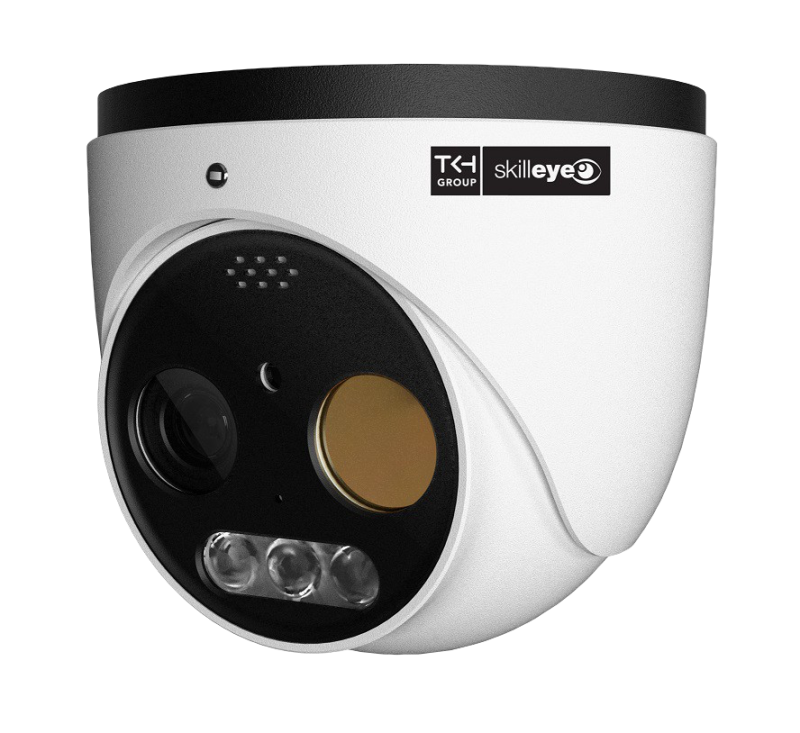

TKH Skilleye Thermal and Visible Eyeball Camera with Audio signaling and Light Flash on alarm. Vanadium oxide uncooled thermal sensor with 256x192 pxls (8um-14um) resolution, 3.2 mm @F1 .1 lens, FOV (HxV) 56 degrees x 42.2 degrees. Visible sensor: 1/2.7 inch (CMOS), 5MP resolution (2592x1944 pxls), Fixed Lens: 4mm @F1 .6, FOV (HxV) 81 degrees x 56.7 degrees, Sensitivity 0.02lux @F1 .6 with AGC ON or 0lux with IR ON, 20-30m WDR, 120dB WDR, BLC/HLC, Defog, 2D/3D DNR. H.265 +/ H.265 /H compression

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002745239
Codice Produttore	SEI-E7123TI-PAT-3
Brand	SKILLEYE
Tipo telecamera	Eyeball IP Termica e Visibile
Risoluzione sensore visibile	5	MP
WDR	120	dB
Portata LED IR	20-30	mt
Grado di protezione IP	IP66
HFOV Termica	56	°
HFOV Visibile	81	°
Alimentazione	12VDC/POE <9W
