Eyeball IP Thermal 256x192 pxls and Visible 5MP, WD

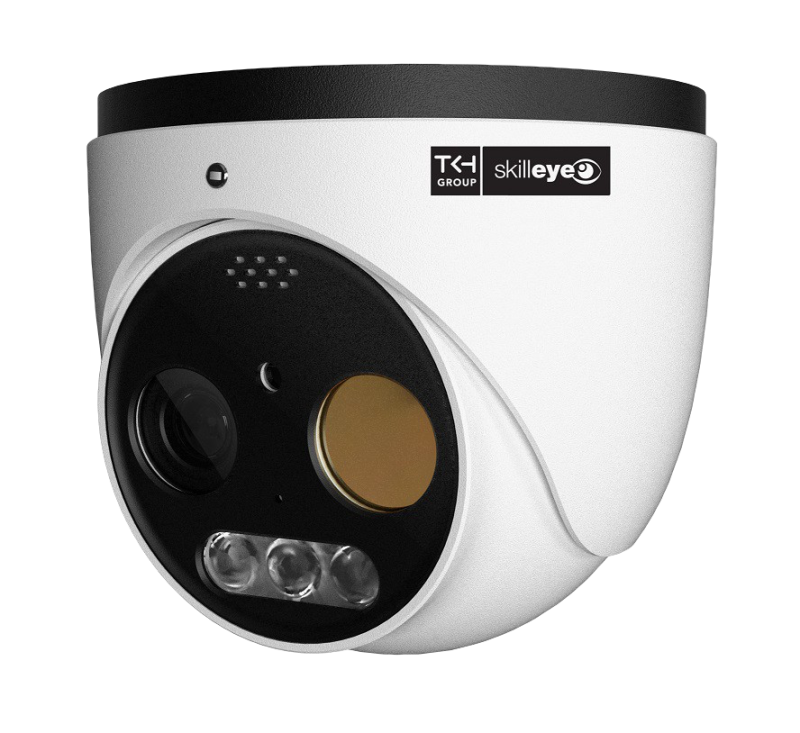

SKILLEYE SEI-E7123TI-PAT-7 Eyeball IP Thermal 256x192 pxls and Visible 5MP, WD

MT Code: SKL_SEI-E7123TI-PAT-7
Manufacturer Code: SEI-E7123TI-PAT-7
Brand: SKILLEYE

TKH Skilleye Thermal and Visible Eyeball Camera with Audio signaling and Light Flash on alarm. Vanadium oxide uncooled thermal sensor with 256x192 pxls (8um-14um) resolution, 7mm @F1 .0 lens, FOV (HxV) 24.8 degrees x 18.7 degrees. Visible sensor: 1/2.7 inch (CMOS), 5MP resolution (2592x1944 pxls), Fixed Lens 8mm @F2 .0, FOV (HxV) 38 degrees x 27.5 degrees, Sensitivity 0.03lux @F2 .0 with AGC ON or 0lux with IR ON, 20-30m WDR, 120dB WDR, BLC/HLC, Defog, 2D/3D DNR. H.265 +/ H.265 /H compression

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002745246
Codice Produttore	SEI-E7123TI-PAT-7
Brand	SKILLEYE
Tipologia telecamera	Eyeball IP Termica e Visibile
Risoluzione sensore visibile	5MP
WDR	120	dB
Distanza LED IR	20-30	mt
Analisi Video	ADVANCED VCA 2.0 con Voice&Light Annunciation
HFOV Termica	24.8	°
HFOV Visibile	38	°
Grado di protezione IP	IP66
Alimentazione	12VDC/POE <9W
