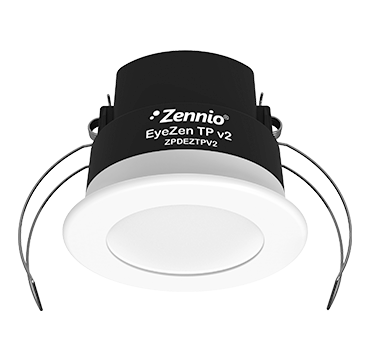

ZENNIO ZPDEZTPV2W EyeZen TP. Motion detector/light sensor, white

<p_The Zennio EyeZen TP v2 motion detector, code ZPDEZTPV2W, is a high-quality device designed for ceiling installation and compatible with the KNX protocol.

Key Features

This motion detector has a brightness sensor and offers 360º coverage with a detection range of up to 6 meters in diameter.

Configurations and Features

The device includes several configurable channels for adjusting constant brightness, controlling the turning on of the lights based on the brightness threshold or the detection of motion. The sensor sensitivity settings can be adjusted and the brightness calibrated according to the values of the working environment.

Master/Slave Configuration

The master/slave configuration allows the use of multiple detectors to cover larger areas, making it ideal for large environments.

Installation and Design

The detector is designed for ceiling installation and can be flush-mounted. It is available in two colors: white (ref. ZPDEZTPV2W) and anthracite (ref. ZPDEZTPV2A).

Settings and Calibration

• Adjusting the sensitivity of the sensor.
• Brightness calibration based on the work environment.
• Control how the lights are turned on based on the brightness threshold or the detection of motion.
