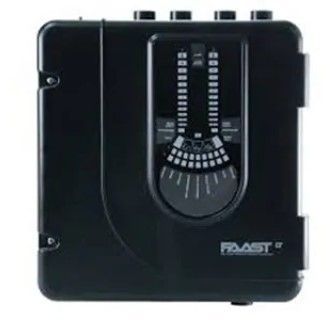

NOTIFIER FL2022EI-HS FAAST LT 2-CHANNEL 2 DETECTORS Aspiration Addressed System

FAAST LT 2-channel addressed suction system that analyzes smoke using 2 addressable detectors with high sensitivity. The suction takes place by means of a double fan and a pipe equipped with holes. This is in ABS with a maximum length of 100 meters per channel. The system incorporates one sensor per channel to control flow continuity. Pendulum LED light bar indication of airflow. Alarm relay. fault and siren output per channel. CPR certificate in accordance with EN 54-20. 18.5-31.5Vcc external power supply. Maximum current up to 570 mA (without connected sirens). 900µA stand-by loop current. Operating temperature from -10°C to +55°C. Relative humidity up to 93 percent (without condensation). Degree of protection IP 65. Dimensions. 403mm x 356mm x 135mm.
