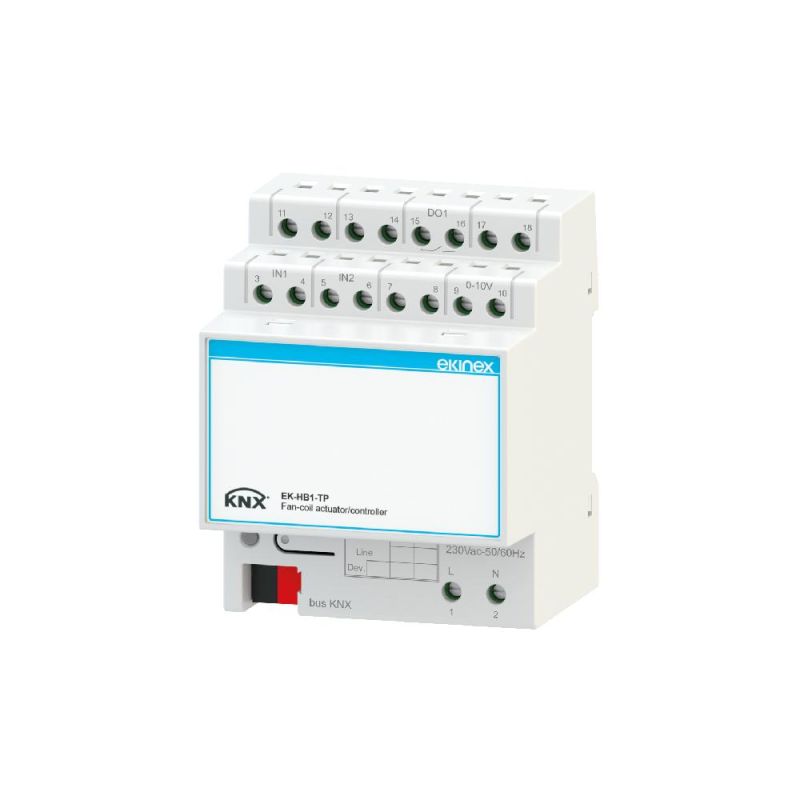

EKINEX EK-HB1-TP Fan coil actuator/controller - 0-10 V control

Fan coil actuator/controller - 0-10 V control

The Ekinex® EK-HB1-TP actuator/controller allows you to control a fan coil unit for the air conditioning of a room. The device can perform the function of a simple actuator in combination with a KNX room thermostat or that of a regulator/actuator with acquisition of the temperature value from a KNX room probe or from a probe connected to an analogue input. The device is suitable for 2-pipe hydraulic distribution systems with ON/OFF control of an electrothermal drive for shut-off valve and a fan with brushless motor. The outputs not used to control the fan coil unit can be configured as channels of a binary output to perform other functions. The equipment also includes 2 inputs that can be freely configured as analogue or digital. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus; 230 Vac mains voltage is additionally required for operation.
