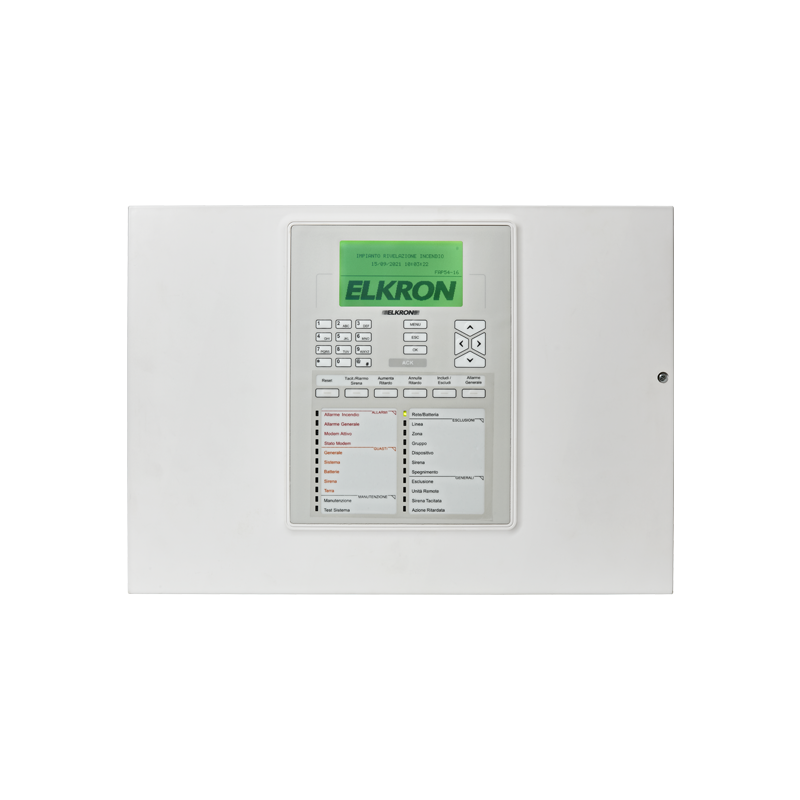

ELKRON FIRE 80SC5A00121 FAP548 EVO Microprocessor control unit with 4 loop lines expandable to 8

FAP548 EVO Microprocessor control unit with 4 loop lines expandable to 8. Same characteristics as the FAP544 UNI 11224. EN54 part 2-4 N certification.

Microprocessor control unit with 4 loop lines expandable to 8. Possibility of managing up to 128 points per loop (1024 points max.) Self-learning of devices in the field Backlit color display New graphics of icons and menus History log: 1,000 events Chronology directly viewable from display 10 programmable passwords on 3 levels 480 programmable zones Monitoring of the sensitivity index and the percentage of dirt of the detector Display of the history and maintenance interventions with menu 11224 USB port for local PC connection to carry out programming via software Real time clock integrated with buffer battery Non-volatile memory Control panel outputs: alarm, siren, fault, programmable (mains failure/exclusion) Internal buzzer Exclusion of single point/zone Power supply: 230Vac Maximum current that can be delivered: 1.5A@24Vdc Battery charge limitation and control of their state Accumulator housing: 2 batteries of 12 @12Vdc Possibility of creating loops max 2 km with 2x1.5mm shielded cable Immunity to disturbances up to 10Vm Common dialogue protocol for all system control units Dimensions: 490 (L) x 350 ( H) x 145 (D) mm
EN54 part 2 and 4 certified (0051-CPD-0238)
