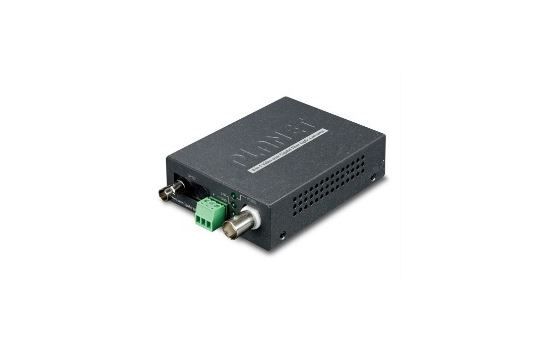

Fiber Optic Transmitter/Receiver Kit

SKILLEYE VF-101G KIT Fiber Optic Transmitter/Receiver Kit

MT Code: SKL_VF-101G KIT
Manufacturer Code: VF-101G KIT
Brand: SKILLEYE

Fiber Optic Transmitter/Receiver Kit for AHD/TVI/CVI/CVBS 1080p analog video signals. Video input on BNC 75Ohm/1Vpp. 10bit digital transmission on 9/125μm (1310/1550nm) single-mode optical fiber. ST type fiber optic connector. 5VDC/2A power supplies included. Dimensions 94 x 70 x 26 mm. Metallic houses. Operating temperature -25 - 70 degrees C. Also available on request with FC fiber connectors.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	VF-101G KIT
Brand	SKILLEYE
Formati video supportati	AHD / TVI / CVI / CVBS
Risoluzione massima	1080p
Impedenza ingresso video	75	Ohm
Tipo di trasmissione	Digitale 10 bit su fibra ottica monomodale
Connettore fibra ottica	ST
Alimentazione	9VDC 1A
Materiale del case	Metallico
Temperatura di funzionamento	-25 ~ +70	°C
