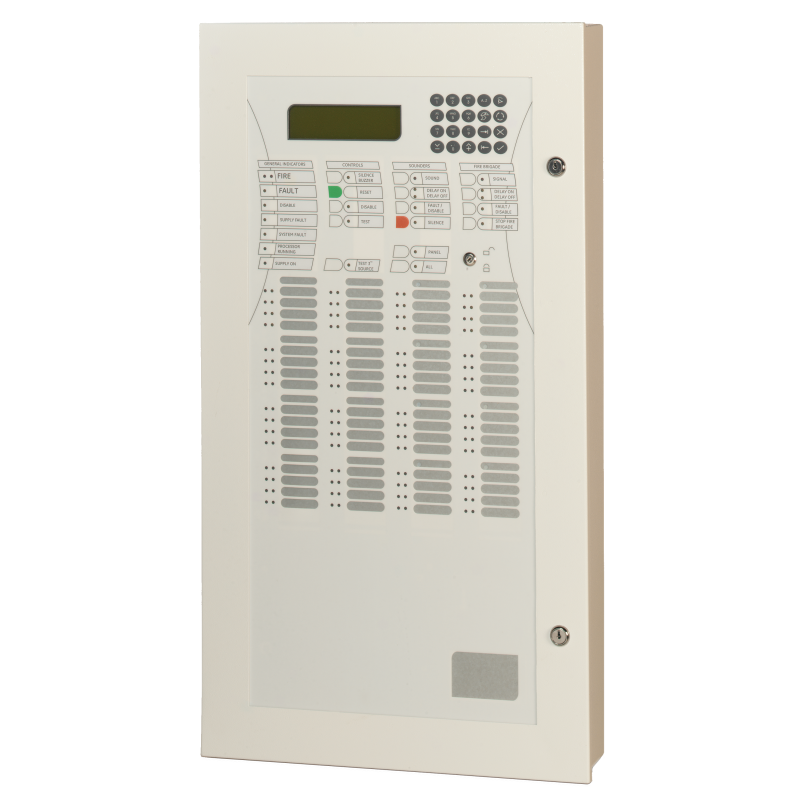

ARITECH FIRE FP2864C-10 Fire detection unit equipped with 2 detection loops expandable to 8

Fire detection unit equipped with 2 detection loops expandable to 8 capable of managing up to 128 addresses per loop (total of 1024 - by regulation, the limit number of connected sensors must not exceed 512 addresses). Complete with graphic display, alphanumeric management keyboard and display panel for 16 LEDs expandable to 64. Equipped with 2 RS232 serial outputs. 1 LON output (optional with LON2000 module) for repetition panels and 1 RS485 output (optional with NC2011 module) for networking other elements of the 2000 system. Internal space for 2 BS131N batteries. Designed for remote remote assistance (via optional modem). EN54 pt. 2 and 4 CPD

General
The FP2864C-10 is an analog control unit with network functions; this Control Unit is accompanied by a complete line of Repeaters/Emulators suitable to satisfy any type of application and naturally suitable for communicating with the aforementioned Control Unit. Network connections can be made with copper or optical fiber; special software is available that works on standard platforms for system configuration, maintenance, system management with graphic maps. The FP2864C-10 provides extensive maintenance functionality, features powerful I/U programming, and supports the Aritech 2000 and 900 protocols

Ease of use
In addition to clear information on areas and an LED system for general information, the control panel has an 8 x 40 character liquid crystal graphic display. This display provides individual addresses with up to 80 characters of alphanumeric information related to the installation. In addition, it allows you to graphically view the performance of each sensor zone by zone. In the form of a bar chart, information such as: real-time value, test value, average value, maximum value, minimum value, communication quality and contamination are clearly represented. It is also possible to plot the diagrams of the above-mentioned information for the

Prevention of false alarms
Various mechanisms are provided to prevent false alarms, such as: background with automatic compensation of the level of sensitivity, day/night sensitivity setting for industrial installations and a mode of coincidence within and between zones. In addition, immunity from false alarms is guaranteed by a stabilization test function that checks' suspicious' sensors

LON700 modules
The FP2864C-10 control unit supports up to 31 LON700 devices on an independent network with the use of the LON2000 card. LON700 devices include LCD repeaters, synoptic driver cards, input and output cards, relay cards, and open collector output cards. The operation of the devices is easily programmable using the powerful and complete I/O logic of the FP2864C-10 control
