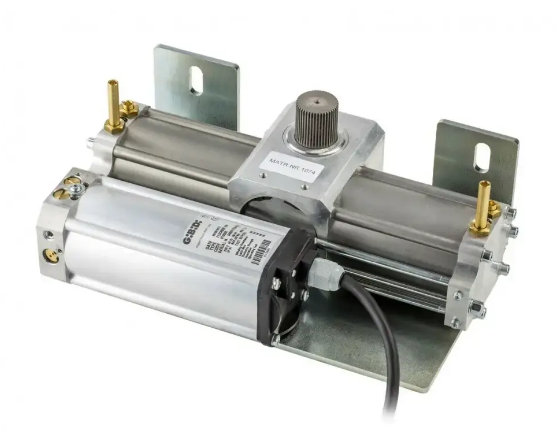

GIBIDI 81324 FLOOR 824 underground hydraulic operator

FLOOR, available both at 230 Vac (FLOOR830) and 24 Vdc (FLOOR824), is the operator that allows you to hide the automation while maintaining the aesthetics of the gate unchanged. For each model, a single version that allows the door to be opened up to 180°. GIBIDI technology makes it possible to make the operator reversible or irreversible with a few simple maneuvers. Thanks to the over-pressure valves for adjusting the force when opening and closing and the 24 Vdc technology, it is possible to achieve the highest level of anti-crush safety as required by EN 12453. The possibility of adjusting the opening and closing speeds and the use of the hall effect window group (optional) complete the product. The unlocking device for emergency maneuvering in the event of a blackout is easy to access and can be used optionally from inside or outside the gate. The foundation box, with self-lubricating bushing, is completely self-supporting and allows the operator to be installed without having to remove the gate door.
