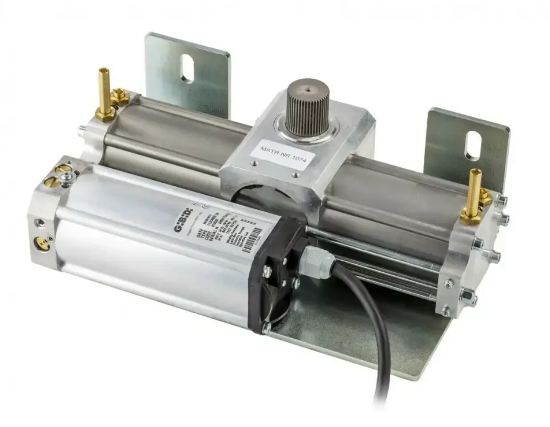

GIBIDI 81524 FLOOR 854

MT Code: GBD_81524
Manufacturer Code: 81524
Brand: GIBIDI

24 Vdc* operator - Maximum opening 150°. Hydraulic

operators at

230Vac and 24Vdc underground dedicated to medium-sized and weighted swing gates. Suitable for both residential and intensive use.

EASY TO INSTALL

Thanks to the special self-supporting foundation box. Ambi-right motor. Unique fastening system of its kind that makes it possible to recover even errors when fixing doors.

QUIET AND FAST

Only 12 seconds to open the gate! Extremely quiet thanks to the use of selected materials and careful gear finishes. In the 24Vdc version, it is possible to adjust the opening speed.

TECHNOLOGICAL AND SAFE

FLOOR contains the best air-free closed-circuit hydraulic technology. Complete with speed and force regulators and also valves for the selection of reversible, irreversible or mixed modes. In the 24Vdc version, it is possible to adjust the anti-crush sensitivity for greater system safety as required by the EN12453 standard. European profile unlock key

A COMPLETE AND RELIABLE RANGE

FLOOR is even more robust in the new version with an opening of up to 150° and 180°. It meets all the aesthetic needs for your gate and is reliable thanks to the use of high quality materials and extensive quality tests.

Use: INTENSIVE

Frequency of use: 40% Motor supply:

230 Vac - 50/60 Hz

Absorbed power: 190W Degree of protection:

IP67 Shaft rotation speed:

7°/s Max. thrust force:

300 Nm Force adjustment: HYDRAULICS Speed adjustment: YES Max. door length: 2.5 m

* Max. door opening:

180° Operating temperature: -20°C +60°C Encoder/End of

stroke:

ENCODER/End of stroke - Optional Lubrication:

OIL
