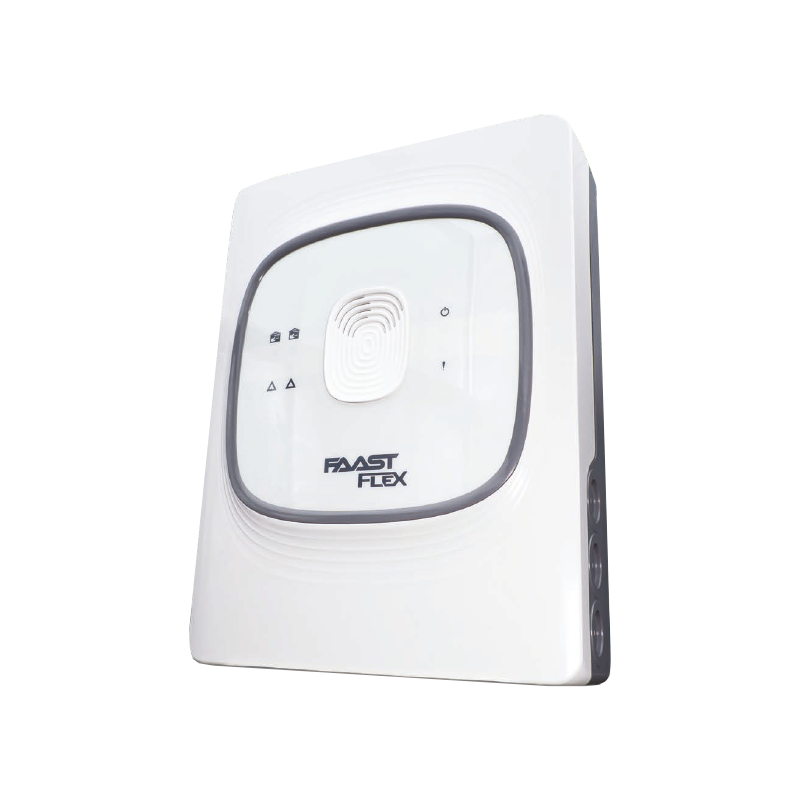

ELKRON FIRE 80SD1G00123 FLX-1 1-channel aspirating smoke detector

FLX-1 1-channel aspirating smoke detector

The FAAST FLEX aspirating smoke detector takes air through a network of pipes on which sampling holes are drilled. Each pipe inlet is equipped with a sensor that monitors variations in the air flow in the pipe, capable of signaling blockages of the holes, loss of tightness of the pipe, alarm and pre-alarm. The air is filtered and conveyed into the detection chamber for the analysis of any smoke particles. At the end of the analysis, the air is expelled from the FAAST FLEX and can be returned to the sampled area. FAAST FLEX can be configured and started using a dip switch without the need for special tools. The device is installed in a short time via a guided installation procedure. It is possible to fix the detector directly to the wall, orienting it in the most convenient direction, always having available space for the wiring
