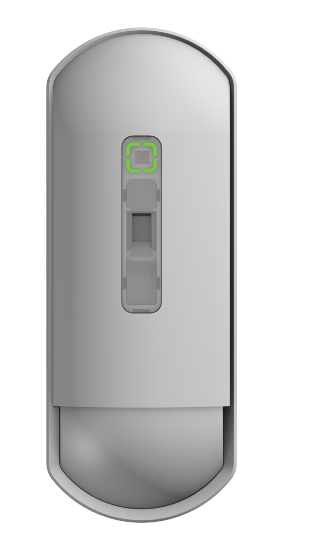

OXFLXDAM FLX-A-DAM Dual technology anti-masking detector for interiors with bivalent lens.

FLX-A-AM is part of the FlipX Advanced series and is OPTEX's latest grade 3 indoor sensor with dual microwave and PIR technology and anti-masking functions. It is also equipped with the exclusive rotatable lens marked OPTEX for wide and narrow detection in a single sensor. Designed for high-security sites, FlipX Advanced provides extremely high detection performance and advanced sensitivity settings to ensure greater accuracy and reliability

Superior detection performance

The FlipX Advanced models have the highest detection performance among all FlipX sensors, making them the ideal choice for high-risk sites. With 80 detection zones and a longer detection range (up to 24 meters), Advanced is the perfect choice for a range of applications in high-security indoor environments, including banks, high-value stores, warehouses, and high-end residential properties. The advanced models have dual conductive shielding to block disturbances caused by light and RFI sources, as well as a very high sensitivity setting for greater precision. It also detects the sliding area under the sensor, so that almost nothing will go unnoticed by the Advanced

Dual Technology

FLX-A-DAM is a dual-technology sensor with microwave and PIR detection and full anti-masking functions. The dual technology adds an additional level of reliability and precision to the FlipX Advanced, as the alarm is activated only when both microwaves and infrared are activated. What sets our dual-technology models apart is the unmatched quality of our custom-made component, the Tough MOD, developed specifically to prevent corrosion caused by condensation, humidity and other damage due to light

Active infrared anti-masking

Designed for high-security applications, FlipX Advanced is equipped with an infrared anti-masking function that generates an alarm signal when the detector is masked. It has two anti-masking functions: one on the surface of the lens and one on the microwave sensor, so if one of the two is covered, it generates

Super-sensitivity

For superior performance and accuracy, Advanced models go beyond normal sensitivity settings to increase detection performance. Usually, our sensors have low, medium or high sensitivity, but to make this product even more suitable for high-risk places, we have also introduced the “super-sensitivity” function to increase its accuracy. When this is set, it allows the sensors to maintain a stable and highly reliable detection even when the temperature difference between the person and the environment is very small.

Ease of installation

Like all FlipX models, the Advanced aims to facilitate the installation process as much as possible to save time and effort. One of its main features is an easily visible multi-color LED indicator. The 180-degree lid lock can be removed in seconds. An exclusive feature of FlipX Advanced is the removable terminal block for easy and fast wiring and the end-of-line resistor plug-in unit for simple installation

Flexible installation up to 3 m
