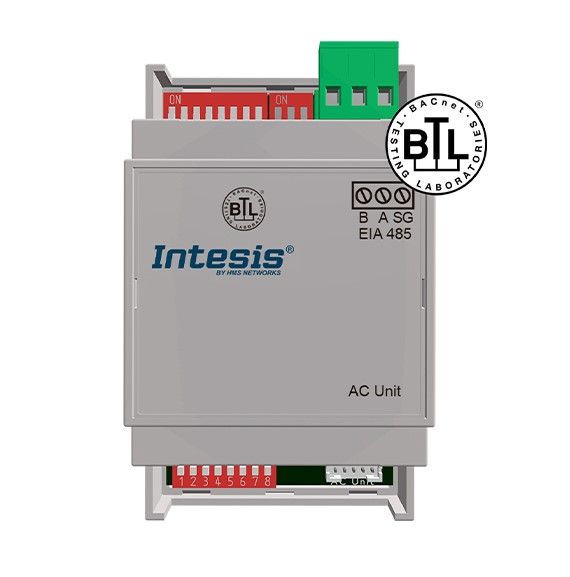

INTESIS INBACFGL001I100 Fujitsu RAC and VRF to BACnet MSTP Interface - 1 unit

Fujitsu RAC and VRF systems to BACnet MSTP interface (to CN connector)

The Fujitsu-BACnet gateway enables fully bi-directional communication between Fujitsu RAC and VRF systems and BACnet MSTP (RS-485) networks.

CHARACTERISTICS
The BTL brand guarantees full interoperability with BACnet devices.
Supports BACnet MS/TP.
Configurable via on-board DIP-switch.
Quick and easy installation (set the DIP switches, plug and play).
No external power is required.
Allows simultaneous control with remote control and BACnet MS/TP.
Small dimensions 93 x 53 x 58 mm.
Mountable on DIN rail, wall or even inside the indoor unit in some AC models.
Abstraction of properties and functionality of air conditioning units as fixed BACnet objects.
Occupancy function for energy saving. The costs generated by HVAC systems in buildings are considerable, this type of function allows them to be reduced.
Extensive AC unit control and monitoring from BACnet, including EcoMode, Filter Alarm, Running Hours, Errors and RoomFreezeProtection.

Description
The gateway is connected directly to a Fujitsu indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint... but also the monitoring of errors, alarms and internal variables. Quick and easy installation. It's just a matter of wiring the gateway to the AC unit and configuring the DIP-SW accordingly. No setup software and no power required.
