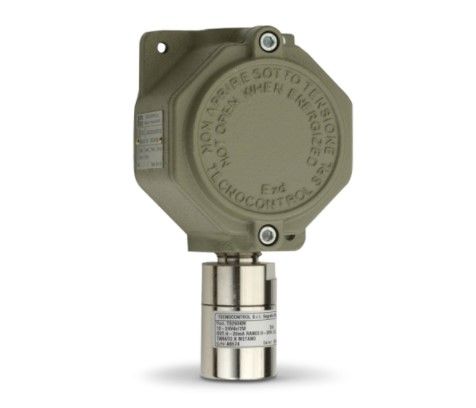

INIM FIRE TS293PX * Pellistor detector for flammable gases on request

MT Code: INM_TS293PX *
Manufacturer Code: TS293PX *
Brand: INIM FIRE

Description

Gas detector (pellistor) on request *. 4÷20mA output. Measurement range 0÷100 LIE percentage. ATEX ZONE 1

Gas detectors in explosion-proof enclosure for use in areas with the presence of potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)

Power supply: 12÷24 Vcc - Atex marking: II 2G Ex d IIC T6 Gb - No. 1 linear output 4÷20 mA - Polarized plug-in terminals

Gas detected: Flammable gases on request - Replacement cartridge: ZSP05/EX - Measuring range: 0÷ 100% LFL - Calibration bottle: B0200- Average clean air life: 5 years
