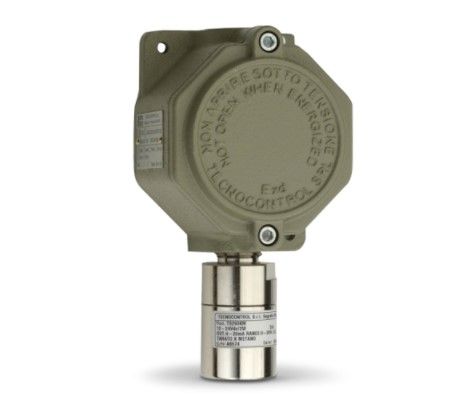

INIM FIRE SE138PX-H ** Pellistor gas detector on request ** - 4÷20mA output and 4 relay outputs
- MT Code
- INM_SE138PX-H **
- Manufacturer Code
- SE138PX-H **
- Brand
- INIM FIRE
Gas detector (pellistor) on request **. 4÷20mA output and 4 relay outputs. Measurement range 0÷100 LIE percentage. ATEX ZONE 1
Gas detectors in explosion-proof enclosure for use in areas with the presence of potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)
12÷24Vcc power supply - Atex marking: II 2G Ex d IIC T6 Gb - No. 3 solid state alarm relay. MAX 24V/1A resistive load SPST No. 1 - solid-state fault relay. MAX 24V/1A SPST resistive load Alarm levels (Relay) programmable via Dip-Switch - No. 1 linear output 4÷20 mA - Polarized plug-in terminals
Gas detected: See table 2 - Replacement cartridge: ZSP02/EX - Measuring range: 0÷ 100% LFL - Calibration bottle: B0200 - Average clean air life: 5 years
Codice Produttore | SE138PX-H ** |
---|---|
Brand | INIM FIRE |
