INIM FIRE SE237KB Catalytic Gasoline Detector - 4÷20mA output and 4 relay outputs
- MT Code
- INM_SE237KB
- Manufacturer Code
- SE237KB
- Brand
- INIM FIRE
Gasoline detector (catalytic). 4÷20mA output and 4 relay outputs. Measurement range 0÷20 LIE percentage.

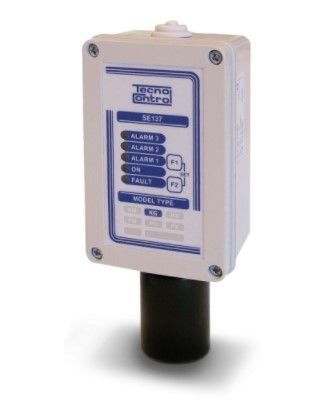

SE237 is a flammable gas detector with a catalytic, pellistor, electrochemical or semiconductor sensor consisting of a case that contains the electrical circuit and the connection terminals. The sensor is inserted in the sensor holder located in the lower part of the case. - Power supply 12÷24Vcc - 110/230 Vac - Degree of protection: IP65 - No. 3 alarm relays. MAX 24V/1A SPST resistive load - No. 1 fault relay. MAX 24V/1A SPST resistive load - Alarm levels (Relay) programmable via Dip-Switch - No. 1 linear output 4÷20 mA - No. 5 LEDs show the operating status (red: alarms; green: power; yellow: fault) - Polarized plug-in terminals
Gas detected: Gasoline - Replacement cartridge: ZSKB/IP - Measuring range: 0÷20% LFL - Calibration bottle: B0200 - Average life in clean air: 5 years
Codice Produttore | SE237KB |
---|---|
Brand | INIM FIRE |
