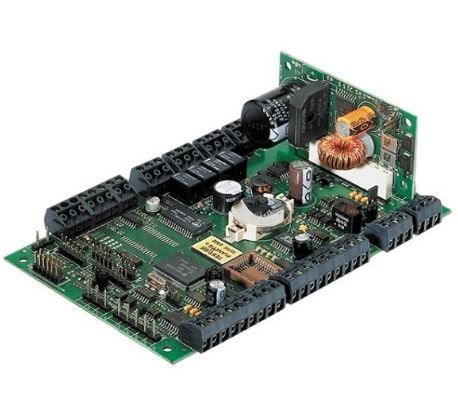

FAAC 316030 COBRA 5000 PLUS IP55 LM CONTAINER MANAGEMENT UNIT

COBRA 5000 PLUS MANAGEMENT UNIT LM IP55 CONTAINER

The new Cobra Plus management unit, with the new ACCESS Plus software, allows the creation of access control systems of all types and sizes, being able to reach up to 500 networked readers. The Cobra Plus unit can manage all reader technologies in the FAAC range. The memory capacity is up to 65000 users with 999 time slots divided on a weekly basis. The Cobra Plus unit is able to manage the annual calendar with variable holidays if connected online with the ACCESS Plus software. The supply of the management unit includes Basic Lite software (free of charge), for basic programs operating in stand-alone mode. Pedestrian and vehicle access control system 16/32-bit CPU 512 Kbyte Flash program memory upgradable via serial port containing all functional variants Buffered 512 Kbyte RAM table memory + transactions Serial Ports 1 RS 232 serial - 1 auxiliary RS 232 serial - 1 RS 485 serial - 1 RS 485 serial for subnetwork management Operating mode Working stand-alone if configured from a laptop or networked with a PC Player management: Max 2 readers (4 with MIXER board) User management (stand-alone) Variable from 10 to 15,000 - Pre-set to 5,000 Reading archive management (stand-alone) “Variable from 200 (15,000 cards) to 51,000 (10 cards) Pre-set to 34,189 with 5,000 users” Time zone management (stand-alone) 255 Management of 1 or 2 programmable parking lanes Single door management: input reader, exit button; input reader, output reader, possibility to manage the door state with the possible activation of the alarm Double door management reader on gate A; reader on gate B on both it is possible to insert the exit buttons and the management of door states and alarms PIN management By connecting to a reader equipped with a display and keyboard (pin and pin+card) Inputs and outputs 6 inputs, 1 burglary tamper, 4 230V relay outputs (+ 6% ÷ 10%) Supply Voltage 230 V~ FUNCTIONAL FEATURES BASIC LITE SOFTWARE (supplied free of charge with the COBRA5000 plus control unit). Simple and easy to install, it was designed for Cobra control units that work in stand-alone mode. It allows the basic configuration for COBRA control panels in stand alone: authorized cards are always read without an expiry, the possibility to choose whether to have antipass-back control, access rights to enable reader A, B or in A&B to activate output (e.g. alarm) for unauthorized cards, quick card loading procedure (e.g. from 1 to 100). Multisite management: the software records the Cobra Plus settings for the various sites. There is no need to buy it as it comes free of charge with Cobra Plus control units. AccessPlus software is required for advanced management, vehicle counting, spire management, door status management
