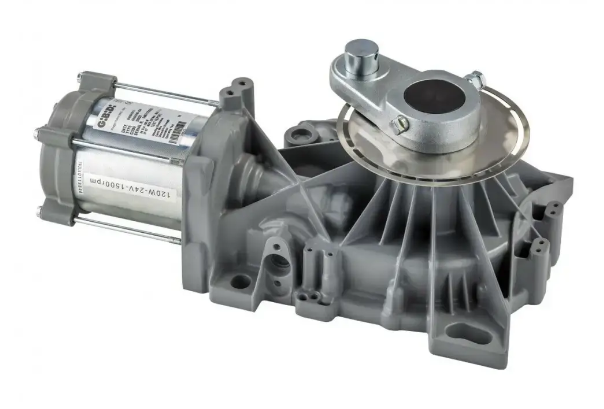

GIBIDI 20034 GROUND624 Underground Operator For Swing Gates

MT Code: GBD_20034
Manufacturer Code: 20034
Brand: GIBIDI

Description

EASY TO INSTALL

Thanks to the special self-supporting foundation box. Ambi-right motor and pre-assembled accessories

QUIET AND FAST

Only 12 seconds to open the gate! Extremely quiet thanks to the use of selected materials and careful gear finishes. In the 24Vdc version, it is possible to adjust the opening speed.

TECHNOLOGICAL AND SAFE

GROUND is made entirely of steel and bronze-aluminum alloy, it is robust and reliable over time. In the 24Vdc version, it is possible to adjust the anti-crush sensitivity for greater system safety as required by the EN12453 standard. European profile unlock key

A COMPLETE AND RELIABLE GROUND RANGE

meets all the aesthetic needs for your gate and is reliable over time also thanks to the fully painted gearmotor that protects it

from atmospheric and environmental agents.

Use: INTENSIVE

Frequency of use: INTENSIVE

Motor supply: 24 Vdc

Absorbed power: 150W Degree of protection:

IP67 Rotation speed:

7°/s Max. thrust force:

320 Nm Force adjustment: ELECTRONIC Speed adjustment: ELECTRONIC Max.

door length: 3.5 M Max. door opening:

110° Operating temperature:
