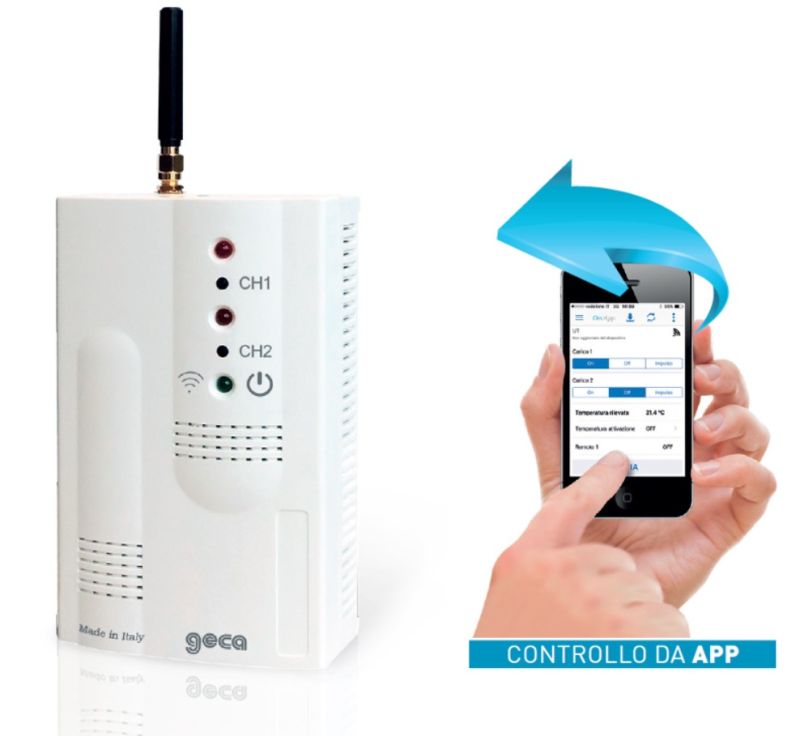

TECNOCONTROL GSM03 GSM remote controller
- MT Code
- TCC_GSM03
- Manufacturer Code
- GSM03
- Brand
- TECNOCONTROL
Description
GSM remote controller
GSM controller that allows you to remotely activate or deactivate devices such as boilers, chronothermostats, fan coils, air conditioners, alarm systems, gates, etc. via app or a simple SMS or a free phone ring. The GSM 03 activator is equipped with 2 relay outputs and 3 dry contact alarm inputs, through which it is possible to immediately notify the user of a possible boiler block, of the failure or restoration of the electrical line, of the intervention of the alarm system (theft, gas, fire) etc.
Thanks to the GSM03 buffer battery, it is able to signal the fall and restoration of the power line.
Standard Specifications
- Power supply: 12/24 Vac/dc - I max 500 mA
- Relay outputs: 2
- Output Power: Class 4 (2w @ 850/900 MHz) Class 1 (1w @ 1800/1900 MHz)
- Sensitivity: 107 dBm @ 850/900/1800/1900 MHz
- Battery: Li-Ion POLY rechargeable 3.7V-500 mA
- User management: Yes (with optional password)
- External antenna: Yes
- Monostable relay: 8 A - 250 Vac
- Command type: APP, SMS, ring or manual
- Dry contact inputs: 3
- Temperature control: Yes
- (internal or external probe)
- Programming: Via APP/SMS
- Dimensions: 140x85x44 mm
- Reference standards: EN 301489-7 /
- EN 301511 /
- EN 60950
Data Sheet
| Codice Produttore | GSM03 |
|---|---|
| Brand | TECNOCONTROL |
