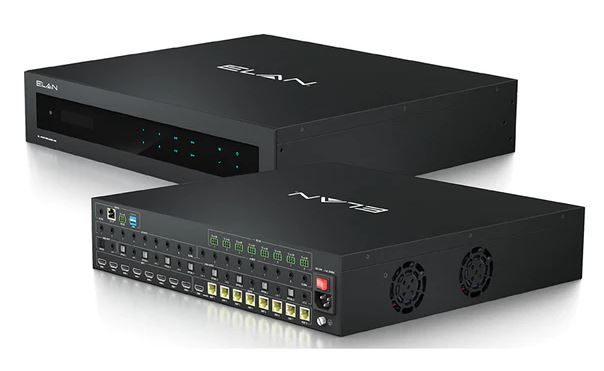

ELAN EL-4KPM-V88-A268-18G HDBaseT 8x8 HDBaseT Matrix aeuro

HDBaseT 8x8 HDBaseT Matrix aeuro- 100m (4K @60 up to 70m) HDCP 2.2, 8x HDBaseT Outputs & 1 x HDMI Outputs, Bi-directional IR, PoC, RS-232 & IP Control, Line Level Volume Control, video down conversion on HDBaseT outputs and independent 26x8 audio Matrix including Audio Return Channel (ARC).

Features

• Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
• Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT outputs
• Output 1 features simultaneous HDMI and HDBaseT output
• Video down-conversion on HDBaseT outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0, or 1080p) to receive 4K 60Hz 4:4:4 video content, while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 70m, and 1080p video up to 100m
• 26×8 Audio Matrix independently controllable from video. Audio source inputs include:- 8 x audio breakout from HDMI source inputs- 8 x audio breakout from zone outputs – 8 x ARC from zone outputs*- 1 x Optical and 1 x analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT outputs
• Control via front panel, IR, RS-232 and TCP/IP Supports PoC (Power over Cable) to power compatible HDBaseT receivers
• Supplied with ELAN 5V 3.5mm IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant *ARC feature compatible with EL-4KHDBT-RX-70-ARC-18G only
