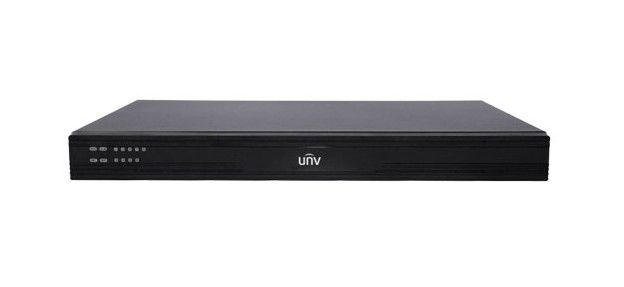

UNIVIEW DC5509-E High Definition Video Decoder

High Definition Video Decoder

Provide 4/6/9 HDMI output interfaces

Provide 2 HDMI input interface

 Up to 3840x2160@30Hz via HDMI output interfaces

 Up to 3840x2160@30Hz via HDMI input interfaces

 Up to decoding at 8MP resolution

 DC5504-E Support 4-ch@4K/16-ch@1080P/36-ch@720P/64-ch@D1 decoding ability

 DC5506-E Support 6-ch@4K/24-ch@1080P/54-ch@720P/96-ch@D1 decoding ability

 DC5509-E Support 9-ch@4K/36-ch@1080P/81-ch@720P/144-ch@D1 decoding ability

 Decode video stream in H.265/ H.264/ MPEG4

 1/2/3/4/6/7/9/16 display split

 Standard ONVIF video stream supported

 Support multicast

 Decode video stream in H.265/ H.264/MPEG4

 Support up to 4/6/9 video-wall display units
