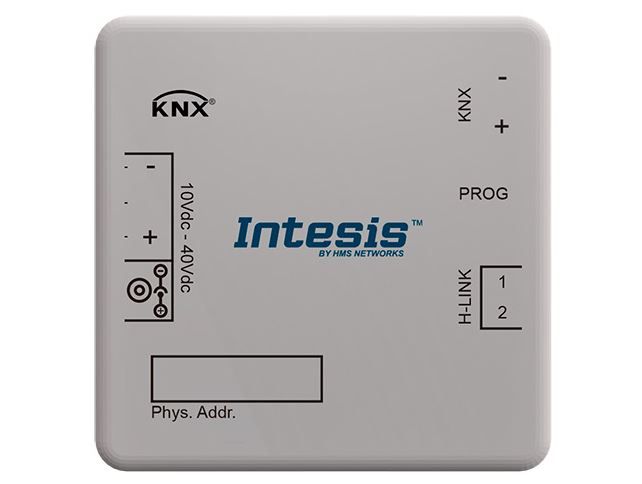

INTESIS INKNXHIT001A000 Hitachi air-water interface to KNX - 1 unit

The Hitachi-KNX gateway enables fully bi-directional communication between Hitachi, air-water units, air conditioners and KNX installations.

CHARACTERISTICS
• KNX certified.
• Configured by the ETS standard configuration tool.
• Small dimensions that allow quick installation inside the air conditioner.
• Offered all DPT items needed to be compatible with all KNX thermostats on the market.
• Energy efficiency features, such as “timeout”, “window open” or “Occupancy”. The costs related to the HVAC systems in a building are among the highest and these functions allow you to reduce them.
• Smooth integration of KNX thermostats allowing control of the AC unit via its own thermostat temperature sensor.
• Simultaneous control of the AC unit via IR remote control and KNX.
• Total control and monitoring of the AC unit from KNX, including internal variables of the AC unit, operating hours counter (for filter maintenance control) and error indication.
• You can save and run up to 5 scenes from KNX.

Description
The gateway is connected directly to an indoor unit. This allows not only the control of the main AC functions such as the operating mode, the fan speed, the temperature set point... but the monitoring of errors, alarms and some internal variables. The connection between the two networks is quickly set up in the ETS configuration tool using the product database available for download. Thanks to the high number of supported KNX DPTs and KNX certification, the gateway guarantees interoperability with any KNX device on the market.
