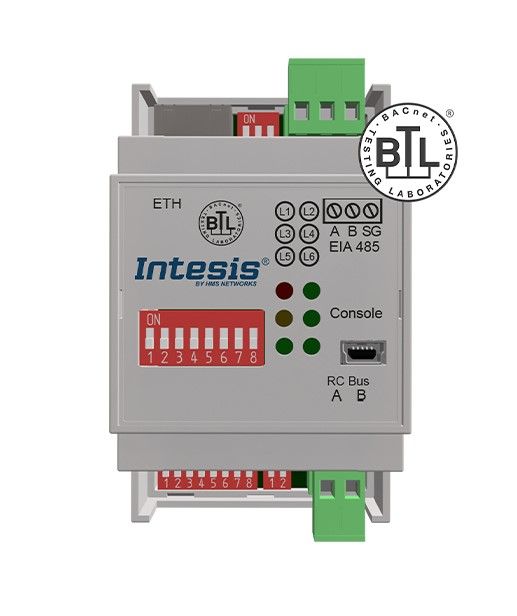

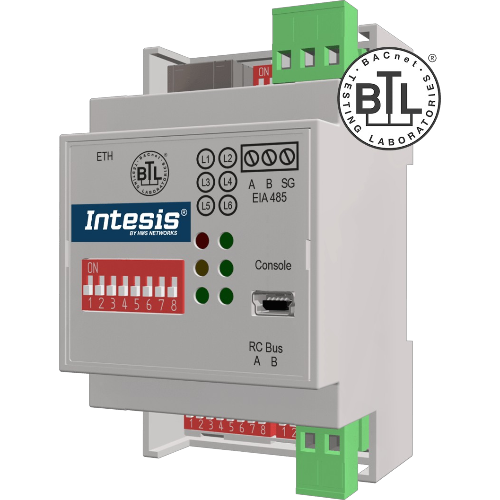

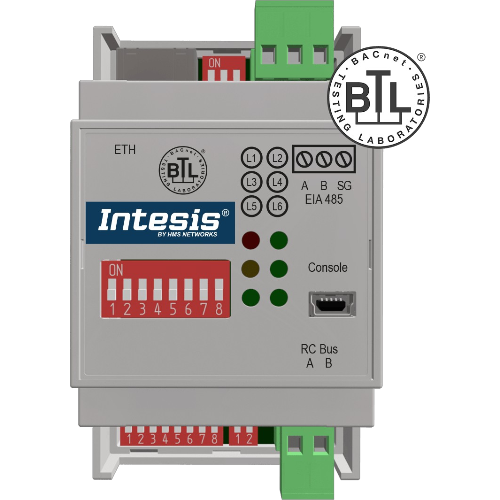

INTESIS INBACHIT001R000 Hitachi Comm. & VRF Unit to BACnet IP/MSTP Interface - 1 unit

The Hitachi-BACnet gateway enables fully bi-directional communication between Hitachi VRF units and BACnet IP or MSTP networks.

CHARACTERISTICS
The BTL brand guarantees full interoperability with BACnet devices.
Supports BACnet IP and BACnet MS/TP.
Configuration from on-board DIP-switch.
IP settings available in a web interface.
Quick and easy installation (connect and set up the DP-SW).
External power not required.
Simultaneous control of the AC unit via manufacturer remote control and BACnet IP or MS/TP.
Small dimensions 93 x 53 x 58 mm.
Mountable on DIN rail, wall or even inside the indoor unit in some AC models.
Abstraction of properties and functionality of air conditioning units as fixed BACnet objects.
The presence function allows energy saving. The costs relating to HVAC systems in a building are among the highest and this type of function allows them to be reduced.
Total control and monitoring of the AC unit from BACnet, including internal variables of the AC unit, operating hours counter (for checking filter maintenance) and error indication.

Description
The gateway is connected directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature set point... but the monitoring of errors, alarms and some internal variables. The product can be installed and configured in a very short time. It's just a matter of wiring the gateway to the AC unit and configuring the DIP-SW accordingly. No configuration and power software required. The product offers a web interface to easily monitor and control the indoor unit connected to the gateway. Additionally, IP network settings can be established from this web interface.
