ABTECNO JCM-1007750 HONOADOOR

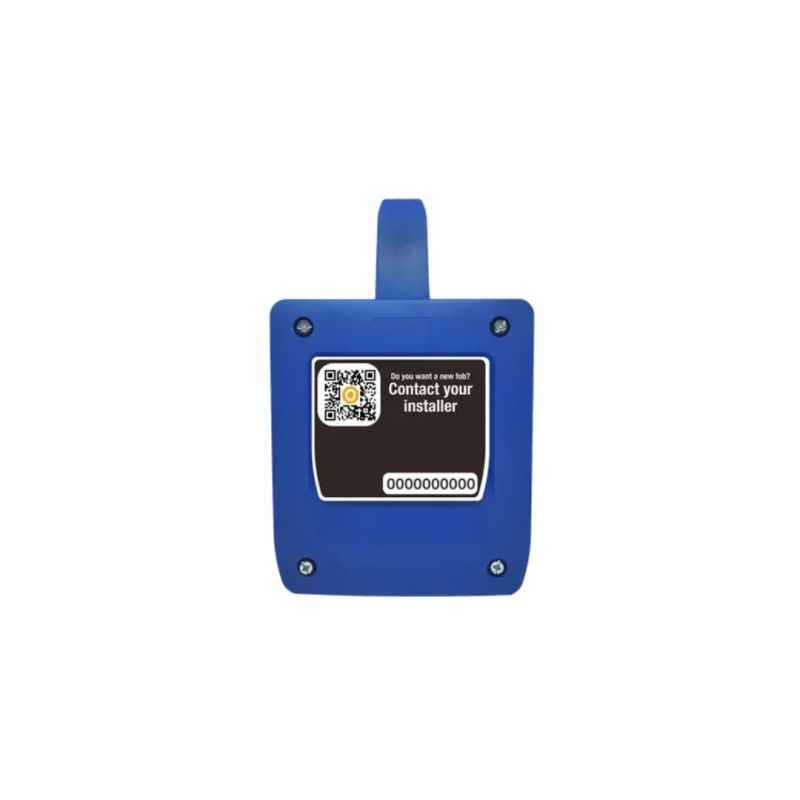

HONOADOOR is a MOTION and Bluetooth connected receiver with door status information and real-time remote activation.

Power supply: The equipment is powered by a voltage of 230Vac. It also incorporates a 500mA protection fuse.

Relay output: The equipment has 2 open contact relay outputs. These outputs can be programmed to be activated with the different transmitter channels from the cloudAssistant. Likewise, such relays can be activated remotely and in real time by the Cloud Assistant.

Inputs: The equipment has 2 inputs for the connection of 2 NC limit switches for monitoring the status of the door (Open/Closed).

MOTION 868MHz receiver module: The equipment incorporates an 868MHz MOTION receiver module for receiving transmitters.

WIFI/GSM module: The device has a WIFI/GSM communication module for connecting to the Internet.

Users: up to 2000 users managed with cloudAssistant.

Events: You can query up to 2000 events with cloudAssistant.

Usage information and statistics: From cloudAssistant you can view a daily graph of the number of relay activations, accepted and rejected users, open and closed door events, and data consumption, among other things.

Light indicators: The equipment incorporates 3 LED lights "ST", "NW", "IN" to indicate the status of the connection to the cloudAssistant.

Antipassback

IP54 (with IP65 cable gland)

Operating temperature -20ºC / +70ºC

Dimensions (L/W/H) 140 x 220 x 55mm
