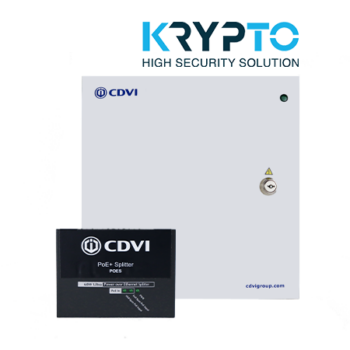

CDVI A22KPOE ATRIUM KRYPTO A22KPOE Central for managing 2 encrypted high-security ports

The A22KPOE control unit is a high-security access control module for the ATRIUM KRYPTO access control system. ATRIUM KRYPTO is designed for small and medium-sized installations, with capacities of up to 500 ports and 10,000 users. The control unit connects 2 electromagnetic stops via PoE and can manage up to 4 series readers (K2 - K2I - K3 - K4) and has an automatic detection function to make installation and configuration easy and fast. Technical characteristics Control of 2 gates and 4 readers (Input/Output per gate only with K readers) It can be parameterized as a Master and/or Slave Management of up to 500 readers, 10,000 users (badges) Storage of up to 25,000 events Integrable with all previous installations (A22) Any A22K control unit can be converted into an A22KEC elevator simply by updating the firmware for free (up to 256 floors). PoE power supply Integrated Ethernet port with 256-bit AES encryption Integrated RS485 communication bus, 1220 mt Built-in secure HTTPS Web Server Simple and fast procedure for storing badges Auto-detect hardware modules 2 Relay Outputs: (750 mA 12 VDC/each) 2 Relay Outputs: 2 C-form relays (clean contact) 5A at 250Vac, 7A at 125Vac, 7A at 30Vcc IPV6 compatible 6 multipurpose inputs (12 using zone doubling) Online firmware updates in less than 10 seconds Software of management and control for PC-Web-Smartphone-tablet including Wiegand 26-30-44 bits/RS485 reader management Including ATRIUM Access Control management software Management up to 1000 digital I/O (1 AIOM 10 I/O module) CCTV Management, Alarms, Emails, Parking, Counters, Elevators Free software
