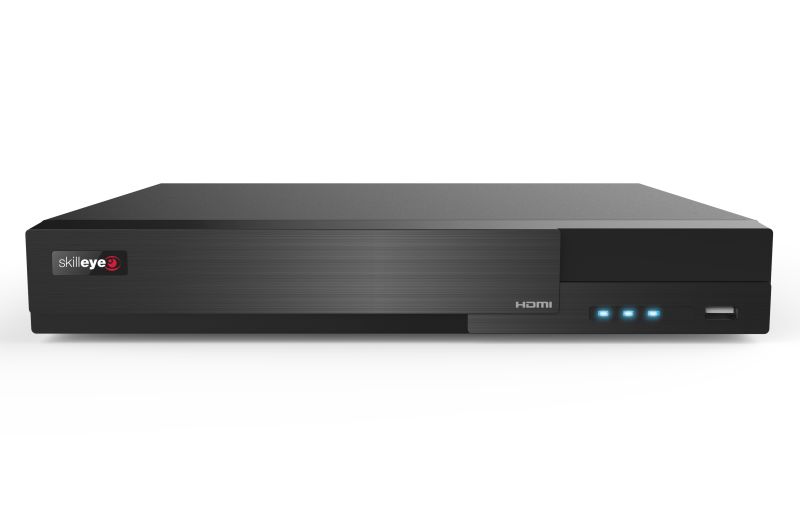

SKILLEYE SER-6D0820TEF Hybrid XVR 5in1 960H-HD-TVI-AHD-HD-CVI-IP - 8 Inputs

XVR TKH Skilleye Hybrid 5 in 1 - Hybrid with 8 Inputs 960H-HD-TVI-AHD-HD-CVI + 4 IP Inputs (up to 12 by replacing the analogue inputs) - H.265 High Profile Compression - Embedded Linux Operating System - Pentaplex - 8 RCA Audio Inputs - 1 RCA Audio Output. 1 HDMI and VGA main video output with resolution up to FullHD - 1 CVBS spot output on BNC. Recording speed (for each analog input) - 25fps at 720p-960H or 12fps at 1080p-4MPLite (HD-TVI-AHD-HD-CVI) or 10fps at 5MPLite (HD-TVI-AHD) + 4 IP cameras max 5MP- 25fps-6Mbps each. Dual-Stream for each video signal - Live Real Time 200fps viewing - Scheduled recording - Motion - Alarm or Manual - Backup to USB or network in DAT or AVI format - 8 simultaneous channel playback - 2 USB 2.0 ports - Web viewer ( IE7+- Safari- Chrome- Firefox)- CMS for Microsoft Windows and Apple iOS- Smartphone viewer (iPhone-iPad-Androïd). Up to 10 simultaneous users on the Ethernet network. 8 Alarm Inputs - 2 Alarm Output. Max 1 HDD 3.5 inch SATA (not included) max 8TB- 1 x eSATA. RS-485 port for keyboard control and telemetry - Pelco D-P protocols - 1 Ethernet network card 10-100Mbps RJ45 - max input-output bandwidth 60Mbps-60Mbps - network protocols DHCP- TCP-IP- HTTP- SMTP- NTP- DNS- PPPoE- Free DDNS- ONVIF- AutoNAT- AutoDDNS- QRCode. Power supply 12VDC-12W (without HDD) - power supply included. Fanless. USB mouse included. Operating temperature from -10 degrees C to 50 degrees C - Relative humidity from 10 percent to 90 percent. Dimensions (WxHxD) - 300 x 52 x 248 mm.
