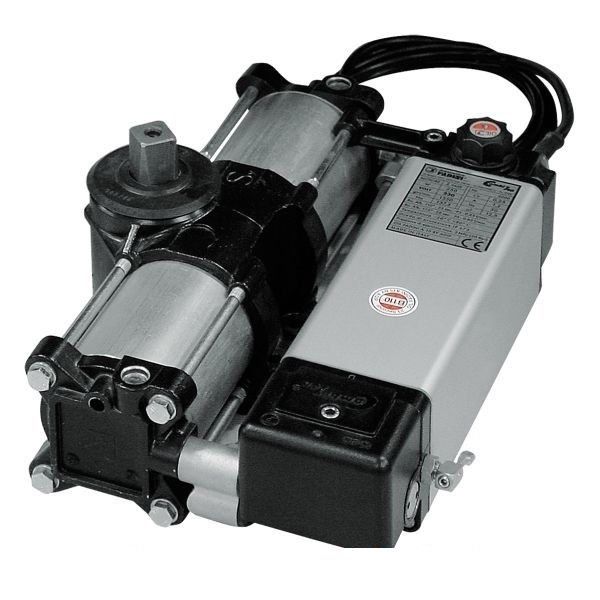

787789BB3L Hydraulic control unit/jack Combi 787 Fadini 787789bb3l

DISCREET, STRONG AND INVISIBLE Compact hydraulic actuator composed of a hydraulic control unit and integrated jack, housed inside the self-supporting foundation box in treated steel (5 mm thick with electrolytic galvanization), to guarantee high resistance to corrosion. Foundation box available in AISI 304 stainless steel. It is possible to fix the mechanical stops, adjustable in closing and opening, directly inside the box. The actuator can be installed or removed without removing the gate leaf. It does not require particular maintenance.

HYDRAULIC Wide range of versions to respond to any type of installation: reversible without hydraulic block, with bidirectional hydraulic block (irreversible), with self-braking hydraulic slowdown in opening and closing, with flow regulator. Anti-crushing safety guaranteed by the by-pass valves on the actuator. Shaft rotation up to 110°; safe and silent movement.

SAFE Pressed steel emergency release control, easy to operate from both inside and outside, using a special key with ergonomic handle.
