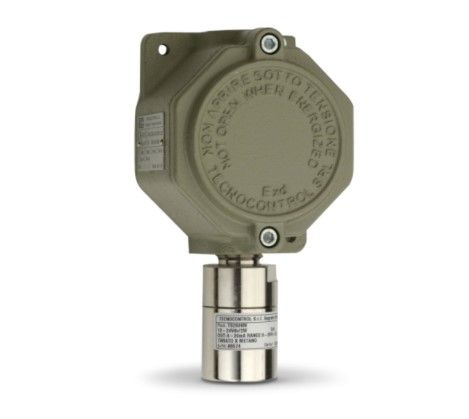

INIM FIRE SE138KI Catalytic Hydrogen Detector - 4÷20mA output and 4 relay outputs

Hydrogen detector (catalytic). 4÷20mA output and 4 relay outputs. Measurement range 0÷20 LIE percentage. ATEX ZONE 1

Gas detectors in explosion-proof enclosure for use in areas with the presence of potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)

12÷24Vcc power supply - Atex marking: II 2G Ex d IIC T6 Gb - No. 3 solid state alarm relay. MAX 24V/1A SPST resistive load - No. 1 solid state fault relay. MAX 24V/1A SPST resistive load - Alarm levels (Relay) programmable via Dip-Switch - No. 1 linear output 4÷20 mA - Polarized plug-in terminals

Detected gas: Hydrogen - Cartridge change: ZSK02/EX - Measuring range: 0÷ 20% LFL - Calibration cylinder: BO200 - Average life in clean air: 5 years
