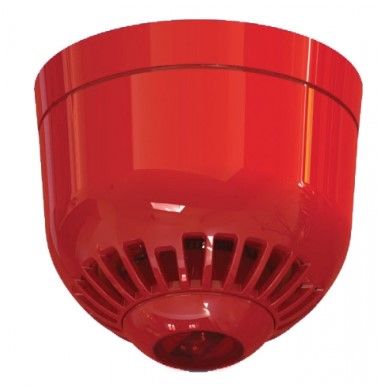

ARITECH FIRE ASC366 Indoor multi-tone piezo-electronic siren with low profile base for ceiling installation complete with flashing light

Indoor multi-tone piezo-electronic siren with low profile base for ceiling installation complete with flashing light. Possibility to adjust volume and flash frequency. Base with locking device. Remote activation selectable on 32 tones. Supply voltage from 17 to 60 Vcc. IP21 protection. Optical coverage diameter of 8.9 mt. at 3 mt. height. Red color. EN54 CPR

Generality
ASC366 is a red electronic acoustic alarm for ceiling mounting, equipped with a flashing light and suitable for fire alarm applications. The base is equipped with a wiring terminal block in order to allow simple operations to insert or remove the device. The certified EN54-23 approval for the optical device corresponds to the C-3-8.9 value, which identifies a maximum installation height of 3 meters with a cylindrical cover of 8.9 meters in diameter. For example, a room measuring 6.3 x 6.3 meters can be covered with a single unit

Simple and quick installation
The ASx360 series of acoustic alarms with flashing light is characterized by a simple and quick installation and maintenance thanks to the innovative base with which it is equipped. The devices are equipped with the TimeSaver™ base used for the 630 detection line, which allows quick wiring of electrical connections. The head of the device is locked on the base in a simple and quick way in order to facilitate installation and removal without any direct intervention on the wiring. This feature allows a significant reduction in installation and maintenance costs

Efficient and versatile
The ASx360 series provides high-power sound output with reduced current consumption in order to limit total current demand and safeguard system costs. The devices are equipped with a volume control to allow them to be adapted to installation requests. There are also 32 different tones that can be selected via a switch. The ASx360 series is equipped with a flashlight designed to provide uniform light within the protected area. A locking device is present on the base of the devices, which can be activated if required. If activated, the device can only be removed using a special tool
