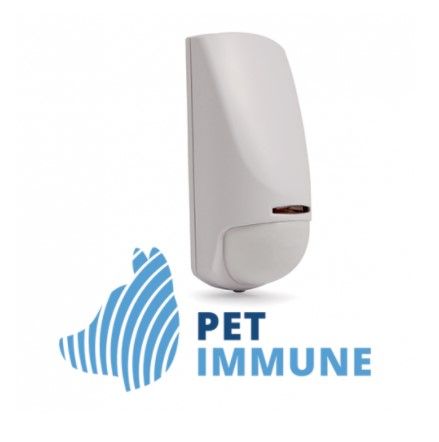

INIM XIRP200H Indoor passive infrared detector - Immune to animals up to about 25 kg

Indoor passive infrared detector. Immune to animals up to about 25 kg. Digital signal analysis. Coverage 12 m. Detection angle 80 degrees. Pulse counting. Temperature compensation. Anti-blinding. Excludable LED. Anti-opening and tear-proof protection. End of line resistors. EN50131-2-4 grade 2 certification.

Technical characteristics: Digital signal analysis 12m range Detection angle 80 degrees Bypassed LED Temperature compensation White light protection Pulse counter Anti-opening and anti-displacement protection Predisposed for EOL resistor Operating temperature: 0 degrees C/+ 50 degrees C Supply voltage: 9 V/16 V dc Current consumption: 15mA 12V dc Installation height: 2.2m Dimensions: 120x60x44 mm
