Industrial Managed Layer 2 Switch, 4 Ethernet ports

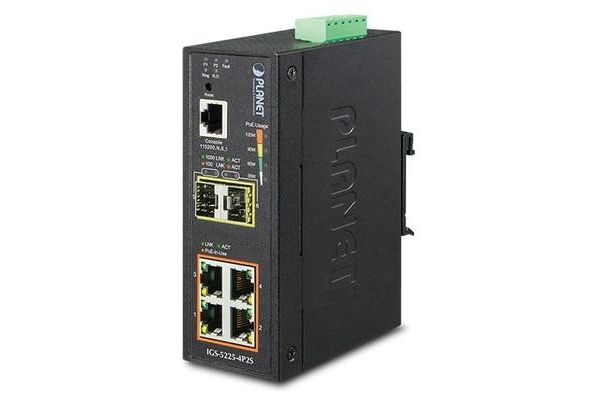

SKILLEYE IGS-5225-4P2S Industrial Managed Layer 2 Switch, 4 Ethernet ports

MT Code: SKL_IGS-5225-4P2S
Manufacturer Code: IGS-5225-4P2S
Brand: SKILLEYE

Industrial Managed Layer2+ Switch, 4 Ethernet ports 10/100/1000Base-Tx POE+ (IEEE 802.3af / 802.3at) on RJ45 connector + 2 SFP slots (supports 1000Base-SX/LX/BX and 100Base-FX SFP/miniGBIC modules). Up to 36W for each PoE port, max 144W in total. Support VLAN, Spanning Tree Protocol, IGMP Snooping, QoS, Multicast. Dimensions (W x D x H): 50 x 87.8 x 135 mm. DIN rail installation. Power supply 48-56 VDC/max 151.8W at full load POE, dual power supply for redundancy with reverse polarity protection (power supply not included); Operating temperature -40-75 degrees C.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	IGS-5225-4P2S
Brand	SKILLEYE
Alimentazione	48-56V DC
Tipologia Dispositivo	Switch Industriale Managed Layer2+
Numero Porte PoE	4
Velocità Porte PoE	10/100/1000	Mbps
Numero Slot SFP	2
Velocità Slot SFP	100/1000	X
Potenza Max per Porta PoE	36	W
Budget Totale PoE	144	W
Funzioni e Protocolli Supportati	VLAN, Spanning Tree Protocol, IGMP Snooping, QoS, Multicast
Tipo di Installazione	Installazione barra DIN
Alimentazione in Ingresso	48~56	VDC
Consumo Massimo a Pieno Carico	151.8	W
Temperatura di Utilizzo	-40~75	°C
