Description

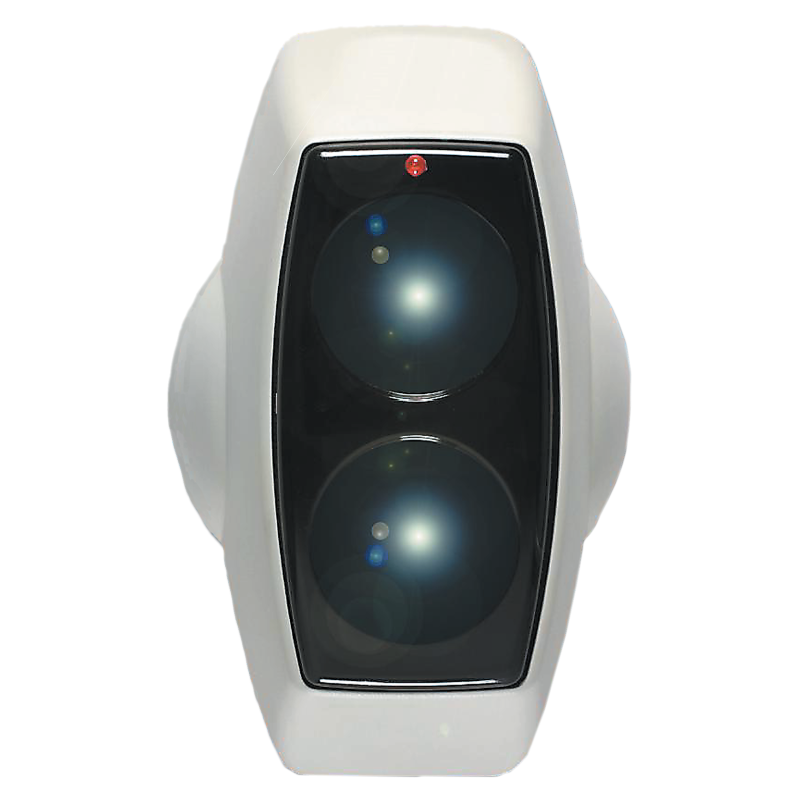

Infrared barrier for reflection fire detection. Complete with prism for a range of 5 - 50 meters. Low absorption with 12/24 VDC power supply. Single relay outputs for alarm and fault. EN54 p.te 12 and CPD approval

.

Generality
The FD705RVDS unit consists of an infrared light transmitter and receiver; these two components are housed in a single compact unit. The infrared signal is reflected by a prism in the field after being transmitted by the TX; this signal is then processed by a special circuit to detect the possible presence of smoke in the environment. FD705RVDS is particularly suitable for those environments where the application of point smoke detectors would not be suitable due to the height of the place or they would be inaccessible; the unit is equipped with a normally open alarm relay and a normally closed fault relay. This smoke detection barrier is therefore suitable for all fire fighting systems. The range of FD705RVDS

is 5-50 meters.

Easy installation
The cabling is limited to the bare minimum and the transmitter and receiver are in the same container. The detector is aligned very easily by controlling the red and green LEDs. A micro-adjustment with the phases “" Prism Find “” (Find prism) and “" Alignment Mode "” (Alignment Mode) ensures optimal operation.
Mechanical alignment is ensured by two knurled rear adjustment wheels on both sides of the detector. The adjustment can be made on both axes. The low power consumption of the two units makes it possible to power more equipment through a single power supply without compromising the autonomy of

the systems.

Reduction of false alarms Depending
on the type of environment, you can choose alarm thresholds of 25%, 35% and 50%.
If the received infrared signal falls below the selected threshold and persists for about 10 seconds, the fire detection relay is activated.
The fire alarm offers both an automatic reset mode and a stored mode.
If the infrared beam is rapidly obscured by up to 90% or more for about 10 seconds, the fault relay is activated. This condition can be created in different ways, such as when an object is placed in the beam trajectory, in the event of a transmitter failure, loss of the prism or sudden misalignment of the detector. The detector monitors the long-term degradation of signal intensity caused by the aging of components or the accumulation of dirt on optical surfaces. The unit can be easily tested using the graduated darkening test card provided in dating.

Details

  • Operation through a reflection prism
  • Range from 5 to 50 meters
  • Maximum coverage 1600 m²
  • Operation from 10 to 30 Vcc
  • Low current consumption
  • Manual or automatic reset
  • Possibility to select 3 alarm thresholds
  • Self-check and automatic contamination compensation Distinct alerts between alarm and fault
  • Vertical or horizontal mounting Easy cabling and alignment

    • Controlled by a
    • CPR EN54 certified
    • microprocessor
