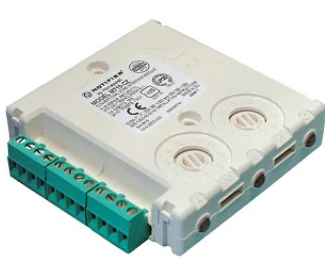

NOTIFIER M710-CZR Input module (suitable for intrinsic safety)

Input module (suitable for intrinsic safety) for conventional detectors that can be used with addressed analog control panels. The detectors can be connected to two conductors (star) or to four (ring). Addressing by means of rotary selectors numbered from 1 to 159 This module is equipped with a tricolor LED (green. red and yellow) for different signals. the module has a short circuit isolator. CPR certificate in accordance with EN-54 parts 17 and 18. Power supply 15-32Vcc. current at rest. 288mA and 500mA with active LED. Operating temperature -20° + 60°C Relative humidity up to 95 percent. End of line resistor supplied with the module.
