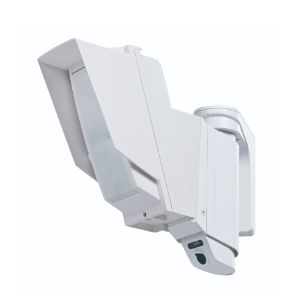

OXINSHX80 INS-HX-80N Passive infrared detector, 24m detection area, with integrated camera

INS-HX-80N provides wide and narrow detection up to 24 m, with a self-configured angle of view aligned to perfectly fit the detection area for excellent event capture. Perfect for protecting long, narrow spaces such as corridors, walkways, and more. Thanks to OPTEX's intelligent logic, detection performance will not be affected by even the most adverse weather conditions, such as heavy rain, fog and high temperatures. InSight sensors are ONVIF compliant and compatible with OPTEX's intelligent visual monitoring solution, CheKt

Integrated detection sensor and video analysis

We at OPTEX have always been at the forefront of detection technologies and innovation in order to offer highly reliable detection solutions. With the evolution of video analysis, we have seized an opportunity: to merge our two powerful technologies - sensors and video analysis - to offer you the best high-performance sensor. We then combined video analysis and sensor data to reliably detect suspicious behavior and unauthorized intrusions

INS HX v2

High-performance detection algorithms to prevent false alarms

Video analysis alone can often struggle to distinguish real intrusions from false alarms when environmental factors intervene. Shadows, small animals, heavy rain or snow, cobwebs, fallen leaves and many other everyday events can pose a problem for cameras. However, in combination with our advanced detection algorithms such as OPTEX-specific SMDA and AND intelligent logic, false alarms have been significantly reduced. SMDA logic provides our detectors with the intelligence to learn and adapt to their environment by analyzing, during the validation of a real alarm, five fundamental analysis parameters: shape, size, speed, temperature and direction. AND logic is particularly effective in reducing false alarms often caused by birds and pets, since it requires the activation of both the upper and lower detection areas to generate an alarm signal.

Reliable alarm logic

Another way that InSight INS-HX-80N reduces false alarms and increases reliability is through its alarm logic. This logic works by creating a time window in which the sensor or camera detects an object. At that time, the detection must be confirmed by both video analysis and sensor analysis for an alarm to be generated. Essentially, InSight provides two levels of detection to truly ensure that any alarm generated is real, giving you peace of mind that you can trust the sensor and take appropriate action

Easy installation and perfect alignment between the optical element and the detection area

INS-HX-80N offers a truly efficient installation as the models are configured automatically. The camera's angle of view and the sensor's detection area are configured to create a perfect match. This way, the capture speed is more accurate and you don't have to worry about lining anything up, as we've already thought of it. Of course, an additional advantage is the installation of a single device, instead of a sensor and a camera, which allows you to secure your site more quickly
