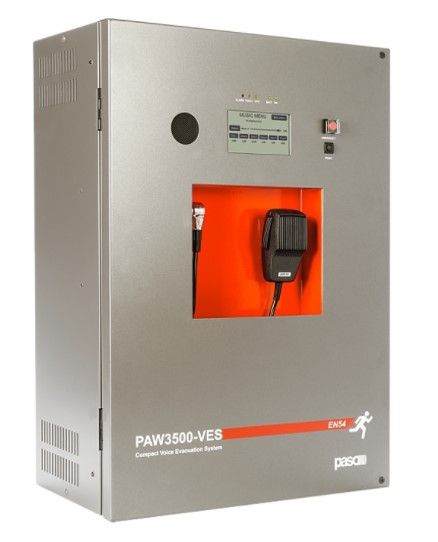

PASO PAW3502-V Evac integrated wall system - 500 W, 2 zones (A/B)

Integrated wall voice evacuation system. 2 250 W amplifiers for a usable total of 500 W. 2 zones. emergency microphone. 2 messages. certified EN 54-16 and EN 54-4

The new PAW3502-V, an integrated “Light” voice evacuation system for emergency systems, has been specially designed for wall mounting and is equipped with a certified control unit in compliance with EN 54-16 and EN 54-4.

It is able to manage 2 alarm zones — each of which is driven by a single amplifier — remote microphone stations and controlled inputs to be connected to a fire control unit. The excellent quality/price ratio makes it the ideal single solution for small installations such as restaurants, shops and small clubs.

Functional characteristics: Functional characteristics Nominal audio power: 500 W in total, freely distributed over the 2 zones with a maximum limit of 250 W for the single zone. 4.3” backlit display with touch screen for selecting alert and evacuation zones and navigation for level adjustment, device configuration, fault display. Front VVF handheld microphone for quickly sending emergency messages out loud. Sending pre-recorded EVACUATION and ALERT messages. No. 7 monitored input contacts, configurable for the reproduction of evacuation and/or alert messages on programmed areas or for the reset of messages. No. 1 musical input for sound sources. No. 1 configurable relay output. Double A+B exit for each zone. Protected local button for emergency installation of the system with relative LED light. Local button to reset the acoustic fault indicator and to play alarm messages. EN54-4 certified internal charger unit for 24Vcc secondary power supply (batteries not included). Possibility to broadcast background music and general calls through microphone stations. Possibility to connect up to 4 remote emergency stations PMB132 Series.
