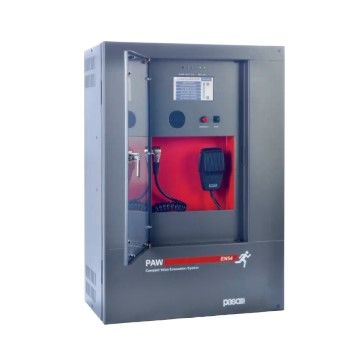

PASO PAW4504-V Evac integrated wall system - 500 W, 4 zones (A/B)

Integrated wall voice evacuation system. 4 250 W amplifiers for a usable total of 500 W. 4 zones. emergency microphone. 2 messages. certified EN 54-16 and EN 54-4

500W/4 zones | double line (A+B)

The new PAW4500-VES series models are integrated voice evacuation systems for emergency systems, specially designed for wall mounting and equipped with a certified control unit complying with EN54-16 EN54-4.

FUNCTIONAL CHARACTERISTICS: Nominal audio power: 500 W in total, freely distributed over areas with a maximum limit of 250 W (for each zone). 4.3” backlit display with touch screen for selecting alert and evacuation zones and navigation for level adjustment, device configuration, fault display. VVF handheld microphone on the front panel (included). Sending pre-recorded EVACUATION and ALERT messages. Listen to pre-recorded messages on a local speaker. No. 7 monitored input contacts, configurable for the reproduction of evacuation and/or alert and/or broadcast messages on programmed areas or for the reset of messages. No. 1 musical input for sound sources. No. 1 auxiliary input configurable as a music source, call with prior activation or call with automatic activation (VOX). No. 3 configurable relay outputs. Double A+B output per zone. Event history (list of faults and/or alarms that occurred in the system). Protected local button for emergency installation of the system with relative LED light. Front reset button. Possibility to connect up to 16 PMB106-G and/or PMB112-G microphone call stations. Possibility to connect up to 4 remote emergency stations PMB132-V and PMB132/12-V or, alternatively, up to 2 remote emergency touch screen TSB8500-V stations. Possibility to connect other PAW4500-VES (up to 6 units in total). EN54-4 certified internal charger unit for 24Vcc secondary power supply (batteries not included).
