FAAC 108801 230V S800 ENC CBAC 180° Swing Door Underground Motor Actuator

230V S800 ENC CBAC 180° Swing Door Underground Motor Actuator

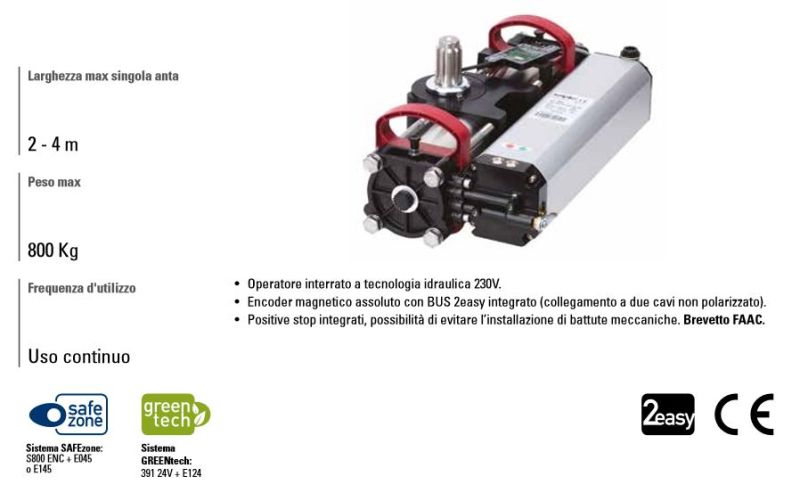

230V underground hydraulic actuator Maximum width of a single door: 2 — 4 m Max weight: 800 Kg Frequency of use (cycles/hour): 45 — 30 - 230V underground hydraulic technology operator. - Absolute magnetic encoder with integrated 2easy BUS (connection to two non-polarized cables). - Integrated positive stops, possibility to avoid the installation of mechanical breaks. FAAC patent. S800 ENC includes: a hydraulic actuator with open/close hydraulic lock (CBAC) or without lock (SBW), an absolute magnetic encoder, an unlocking and adjustment key. The supporting box includes: a steel support box with cataphoresis treatment with an anti-rotation pin, a lid in brushed stainless steel.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Max angular speed: 7.8°/s Max door weight: 800 Kg Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP67 Weight: 16.5 Kg Frequency of use: 30 cycles/hour Max door width: 2 m Oil type: FAAC HP OIL Dimensions (LxDxH): Actuator 450 x 220 x 160 — carrier box 507 x 283 x 200 mm Electronic equipment: Not included
