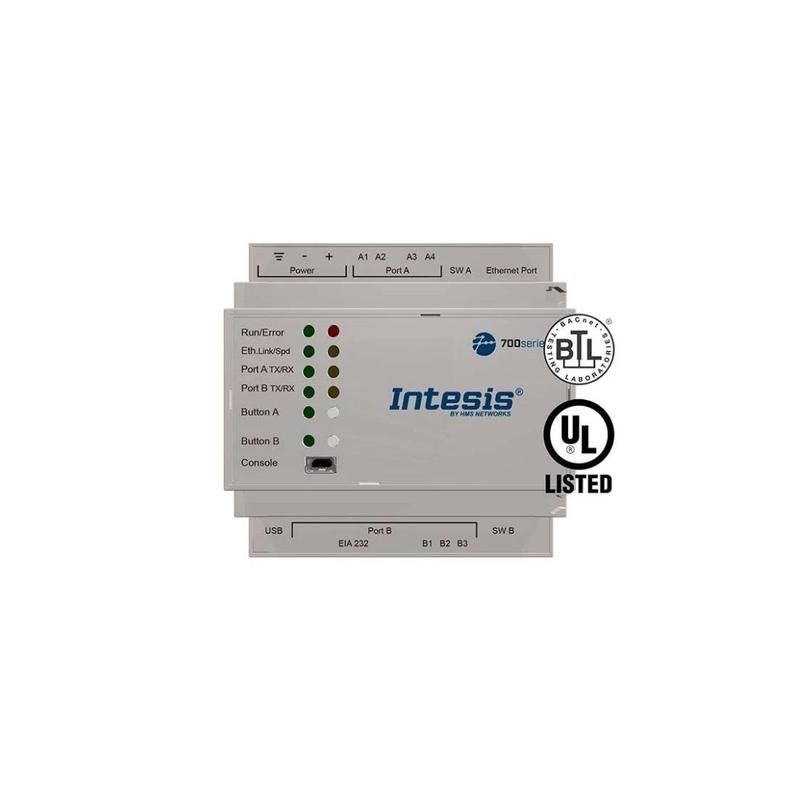

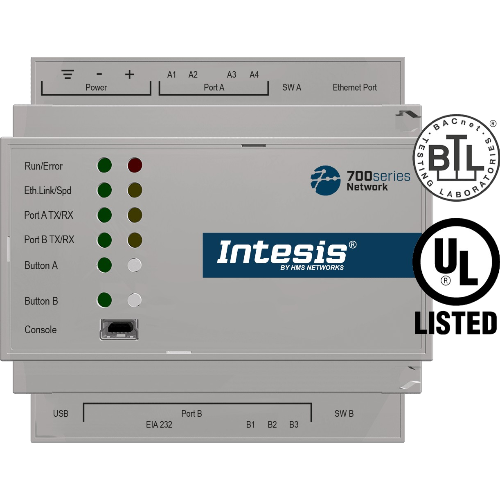

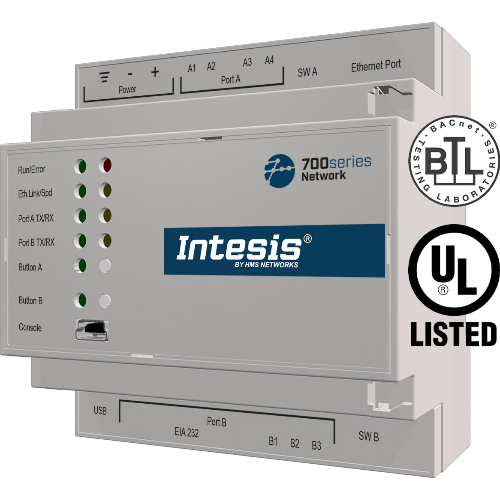

INTESIS IN701KNX1K20000 Inthesis protocol translator with KNX, Serial and IP support - 1200 points

The INTESIS IN701KNX1K20000 product is a protocol translator designed to integrate KNX devices with BACnet-based building management systems (BMS). This gateway allows you to connect KNX installations to BACnet/IP or BACnet MS/TP controllers, making KNX communication objects and resources accessible as if they were part of the BACnet system and vice versa.

Key Features

• Support for KNX TP (twisted pair) devices.
• Support for the BACnet/IP client protocol.
• Capacity to manage up to 3000 KNX communication objects.
• Support for BACnet features such as calendars, trend logs, schedules, and more.

Integration and Configuration

The integration is facilitated by the use of the Inthesis MAPS configuration tool, which allows you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system. Templates can be imported and reused multiple times, significantly reducing commission time.

Gateway functionality

• Support for serial and IP protocols.
• Management of 1200 data points.
• Compatibility with BMS systems based on ASCII, BACnet or Modbus.

This gateway is ideal for industry professionals who need a robust and easy-to-configure solution for integrating KNX devices into BACnet environments.
