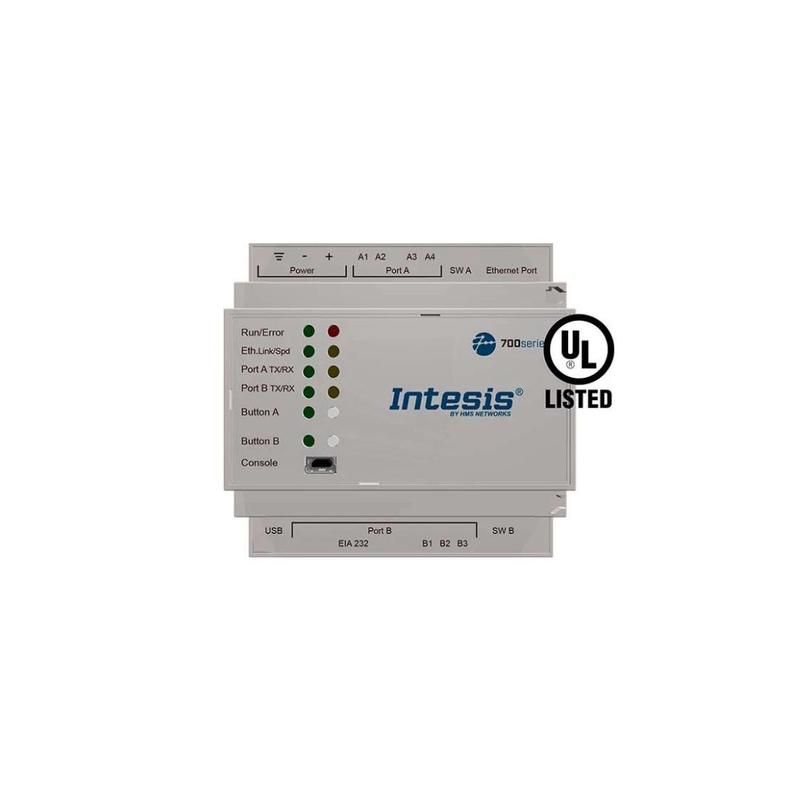

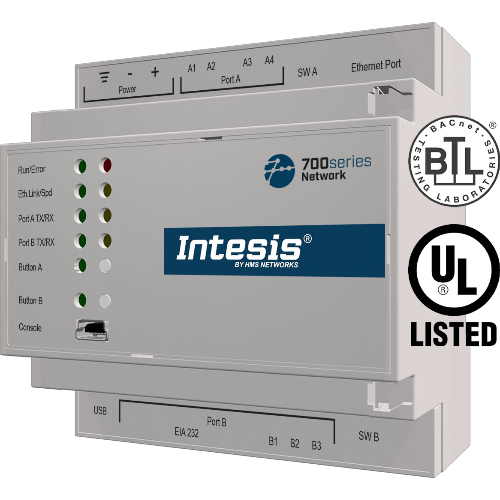

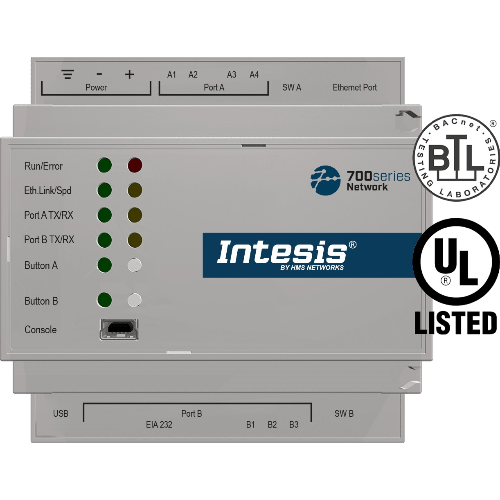

INTESIS IN701KNX3K00000 Inthesis protocol translator with KNX, Serial and IP support - 3000 points

The INTESIS IN701KNX3K00000 product is a protocol gateway designed to integrate and connect KNX devices with building management systems (BMS) that use different protocols such as BACnet/IP, BACnet MS/TP and Modbus RTU/TCP.

Key Features

This device is part of the IN701-KNX series and offers a common platform for integrating KNX devices into various BMS systems.

Supported Protocols

• KNX TP
• BACnet/IP
• BACnet MS/TP
• Modbus RTU
• Modbus TCP

Capacity and Performance

The gateway supports up to 3000 data points, making it suitable for large scale applications.

It consumes only 1.7 W of power, ensuring optimal energy efficiency.

Interface and Connectivity

• Ethernet for connecting to the IP network
• USB for configuration and debugging
• Support for serial devices

Applications

This gateway is ideal for integrating KNX devices into building automation systems that use BACnet or Modbus protocols, facilitating communication and control between different systems.

It is particularly useful in environments where centralized and integrated management of various automation systems is necessary.
