INTESIS IN701KNX6000000 Inthesis protocol translator with KNX, serial and IP support - 600 points

INTESIS IN701KNX6000000 Product Description

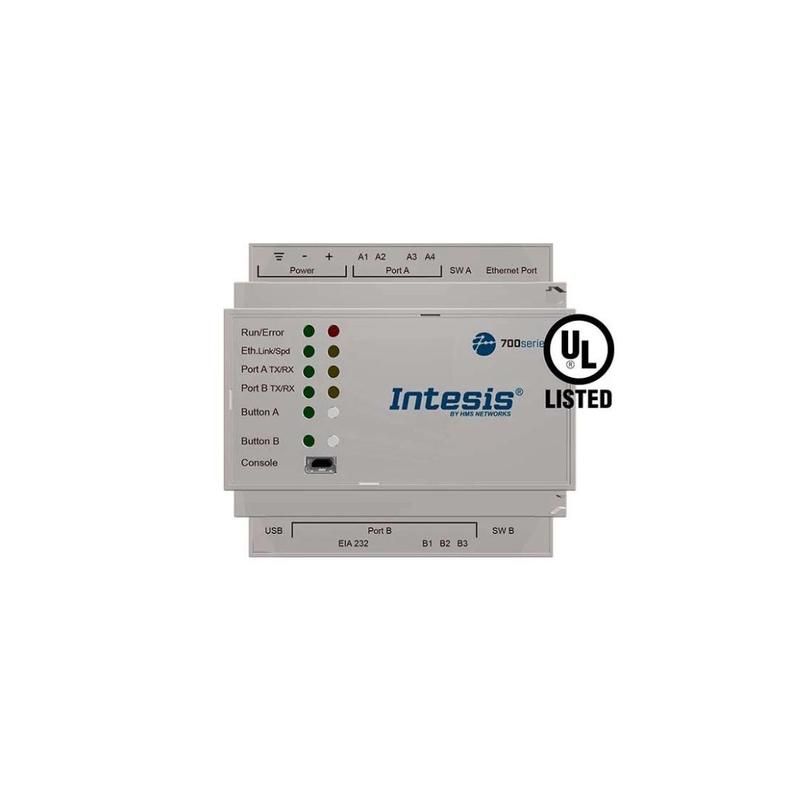

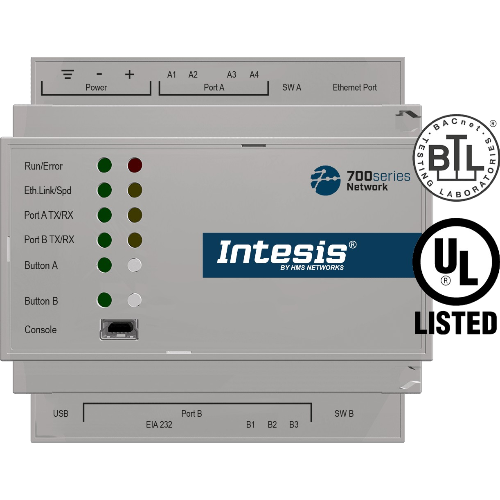

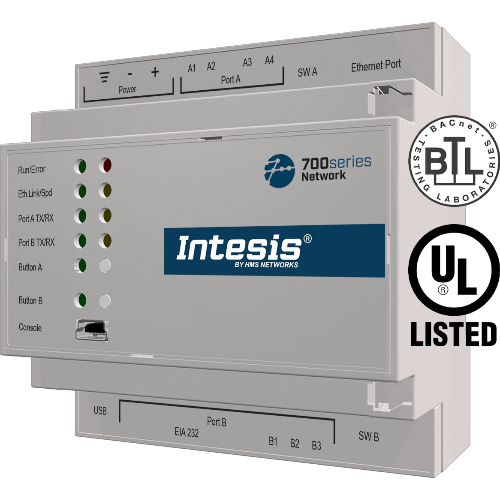

The INTESIS IN701KNX6000000 gateway is an integration device designed to connect BACnet/IP and MS/TP systems with KNX TP systems. This gateway makes it possible to make the data and resources of the BACnet devices accessible by the KNX system as if they were an integral part of it, and vice versa.

Key Features

• Support for the BACnet/IP client protocol.
• Compatible with KNX TP (twisted pair) devices.
• Manage up to 3000 KNX communication objects.
• Access to BACnet's advanced features, such as calendars, trend logs, schedules, and more.

Configuration and Use

The configuration of the gateway is facilitated by the use of the Inthesis MAPS tool, which allows you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system.

• Import and reuse templates to significantly reduce commission time.
• Create and validate product configurations.

Integration Capability

The IN701KNX6000000 gateway allows the integration of any BACnet MS/TP or BACnet/IP server device with any KNX device or system, ensuring bidirectional communication between the two systems.

Efficiency and Quality

The solution is designed to offer efficiency and high quality, thanks to the ability to plan projects, set up evaluation demos, and provide guidance during field tests.
