INTESIS IN7004851000000 Inthesis protocol translator with serial and IP support - 100 points

INTESIS IN7004851000000 Inthesis protocol translator with serial and IP support - 100 points

MT Code
INT_IN7004851000000
Manufacturer Code
IN7004851000000
Brand
INTESIS
INTESIS
Description

INTESIS IN7004851000000 Product Description

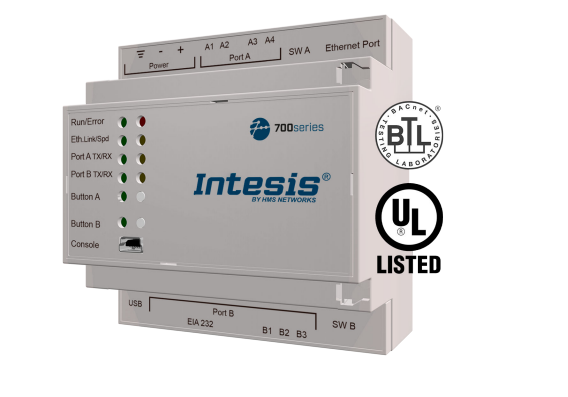

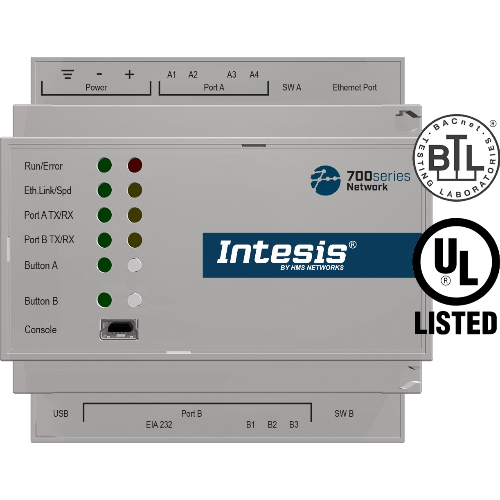

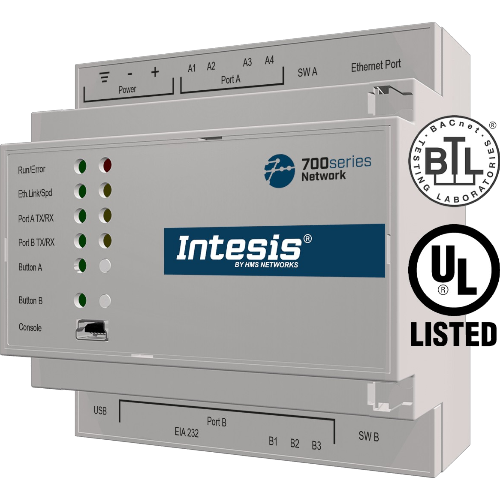

The INTESIS IN7004851000000 gateway is designed to integrate Modbus RTU or TCP devices with building management systems (BMS) based on BACnet IP or BACnet MS/TP. This integration makes it possible to make the signals and resources of the Modbus system accessible as if they were an integral part of the BACnet system and vice versa.

Main Features

  • Support for BACnet IP client and BACnet MS/TP master.
  • Support for two independent RTU ports for integration with BACnet IP.
  • Capacity to support up to 5 Modbus TCP nodes/devices and up to 32 Modbus devices per RTU node (without repeater), for a total of up to 255 devices.
  • Generate and download models for Modbus products.
  • Easy integration and updates thanks to the Inthesis MAPS configuration tool.

Technical characteristics

  • UL and BTL certification.
  • Support for BACnet features such as trend logs, calendars, and programs.
  • Ability to scan the BACnet network to discover devices using the BACnet Explorer function.
  • Support for Modbus RTU and Modbus TCP protocols.
  • Support for BACnet/IP and BACnet MS/TP protocols.

Configuration and Updates

The configuration of the gateway is easily managed through the Inthesis MAPS tool, which allows you to create projects with predefined models, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system. Both configurations and the gateway firmware can receive automatic updates.

Efficiency and Flexibility

The INTESIS IN7004851000000 gateway is designed to reduce commission time and improve the efficiency of the solution, thanks to the possibility of importing and reusing models multiple times. This approach greatly simplifies the integration process, making it faster and more efficient.

Data Sheet
Codice a barre 8000002615538
Codice Produttore IN7004851000000
Brand INTESIS
