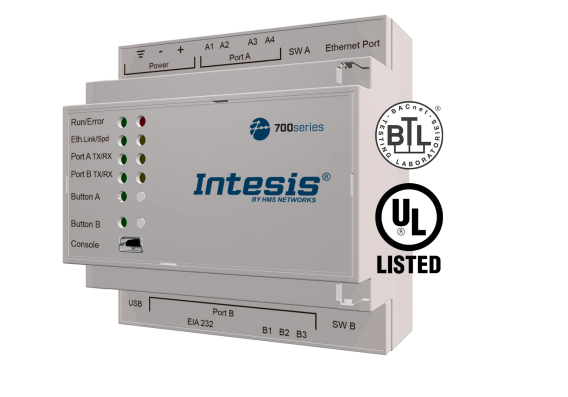

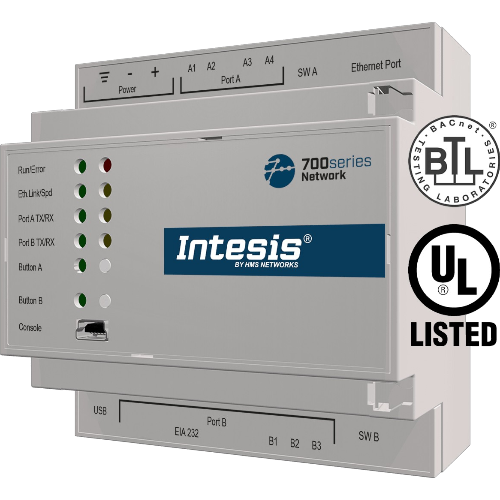

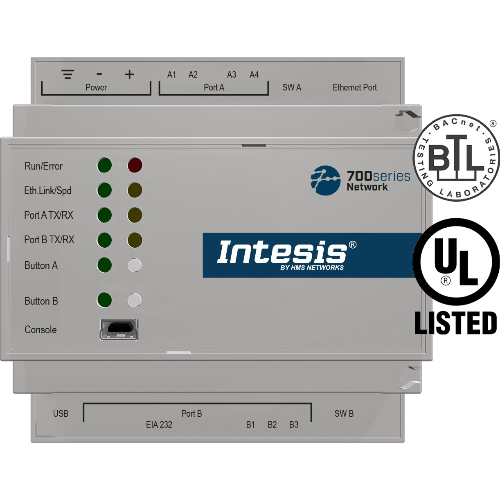

INTESIS IN7004853K00000 Inthesis protocol translator with serial and IP support - 3000 points

<p/the INTESIS IN7004853K00000 product is a bidirectional protocol gateway designed to integrate BACnet-based building management systems (BMS) with Modbus controllers and devices. This device allows for quick and easy integration thanks to its unique onboard capabilities.

Protocol Support

The gateway supports both Modbus RTU and Modbus TCP, allowing you to work with both protocols simultaneously. This ensures seamless integration with any BMS system or Modbus controller.

Key Features

• BACnet/IP and BACnet MS/TP support: the gateway can act as BACnet/IP client and BACnet MS/TP manager.
• Two independent Modbus RTU ports available for BACnet/IP integrations.
• Support for up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total.

Configuration and Management

The gateway configuration is managed through the Inthesis MAPS software. This tool allows you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system.

Configuration Features

• Import and reuse project templates to reduce commission time.
• Automatic firmware and configuration software updates.
• Scan the BACnet network to detect available devices and objects, avoiding manual entry.

Applications and Integration

The gateway allows Modbus RTU or TCP devices to be integrated with BACnet control systems, making Modbus signals and resources accessible as if they were part of the BACnet system and vice versa. BACnet's advanced features, such as calendars, trend logs, schedules, and more, are fully supported.

Examples of Use

• Integration of building management systems (BMS) with industrial controllers and devices.
• Access to Modbus signals and resources by BACnet control systems.
