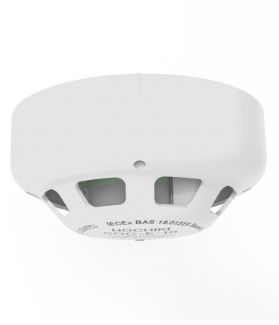

ARITECH FIRE SOC-E-IS(WHT) Intrinsically safe optical detector

Intrinsically

safe optical detector. In combination with the GBX2000 barrier and IU2055 module, it allows the use of the detector in a 2000 series analog/addressed system.

Complies with EN54 pt.7 CPR and ATEX Ex ia IIC T5 Ga (-20°C ≤ Ta ≤ +55°C)

Classification of hazardous areas

ATEXII1G II - Equipment group (not mining) 1 - Equipment category (for Zone 0 or 20) G - Type of explosive atmosphere (Gases, Vapors and Mists) Cenelec Ex ia IIC T5 Ga (-20°C ≤ Ta ≤ +55°C) Ex: explosion protection symbol ia - Protection concept (intrinsic safety) IIC - Equipment

Group () T5 - Classification of temperature (100°C)

Ga - Equipment protection level (Continuous)
Tamb - Ambient temperature range (-20°C to +55°C)
