ELKRON FIRE 80SC2N00121 IO501 Miniaturized output module for signaling
- MT Code
- ELK_I_80SC2N00121
- Manufacturer Code
- 80SC2N00121
- Brand
- ELKRON FIRE

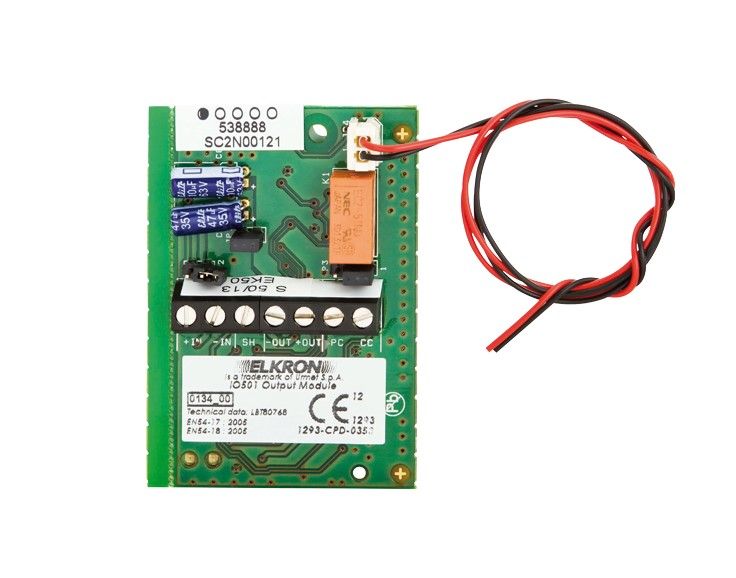

IO501 Miniaturized output module for signaling. EN 54 part 18 and 17 certificate. N.1293-CPD-0353
The IO501 module is equipped with a short circuit isolator and is an actuator module (MU) with dry contact output. It does not require any external power supply but is powered directly by the detection line. A jumper on the module allows you to select the output contact, whether normally open or closed. The module is equipped with an input for the supervision of the local power supply voltage (24 Vdc) of the equipment to be controlled: the lack of this voltage or its unwanted presence is signaled by the central module. Suitable for installation inside the HPA700F siren and TM24 control panels
Codice Produttore | 80SC2N00121 |
---|---|
Brand | ELKRON FIRE |
