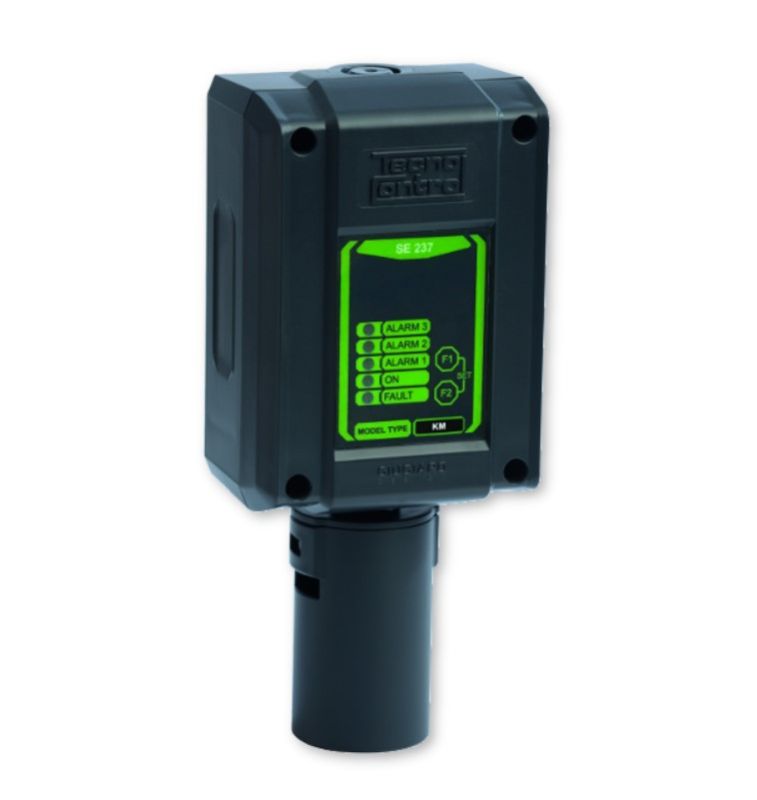

TECNOCONTROL SE237PB IP65 gas detector - relay - pellistor sensor for gasoline vapor

IP65 gas detector - relay - pellistor sensor for gasoline vapor

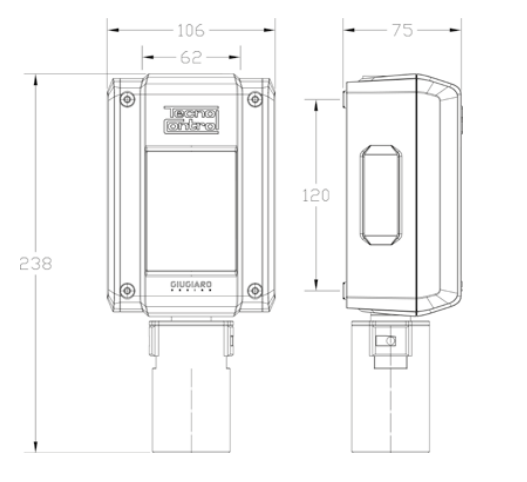

SE237 is a flammable gas detector with a catalytic, pellistor, electrochemical or semiconductor sensor consisting of a case that contains the electrical circuit and the connection terminals. The sensor is inserted in the sensor holder located in the lower part of the case.

• Power supply 12÷24Vcc - 110/230 Vac
• Degree of protection:
IP65 • No. 3 alarm relays. MAX 24V/1A SPST resistive load
• No. 1 fault relay. MAX 24V/1A SPST resistive load
• Alarm levels (Relay) programmable via Dip-Switch
• No. 1 linear output 4÷20 mA
• No. 5 LEDs show the operating status (red: alarms; green: power; yellow: fault) • Polarized plug-in terminals

Gas detected: Gasoline Replacement
cartridge: ZSP/IP
Measuring range: 0÷100% LFL Calibration
bottle: B0200 Average life in clean air: 5 years
