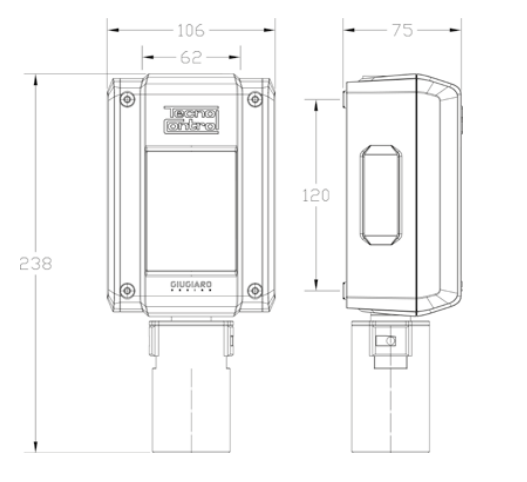

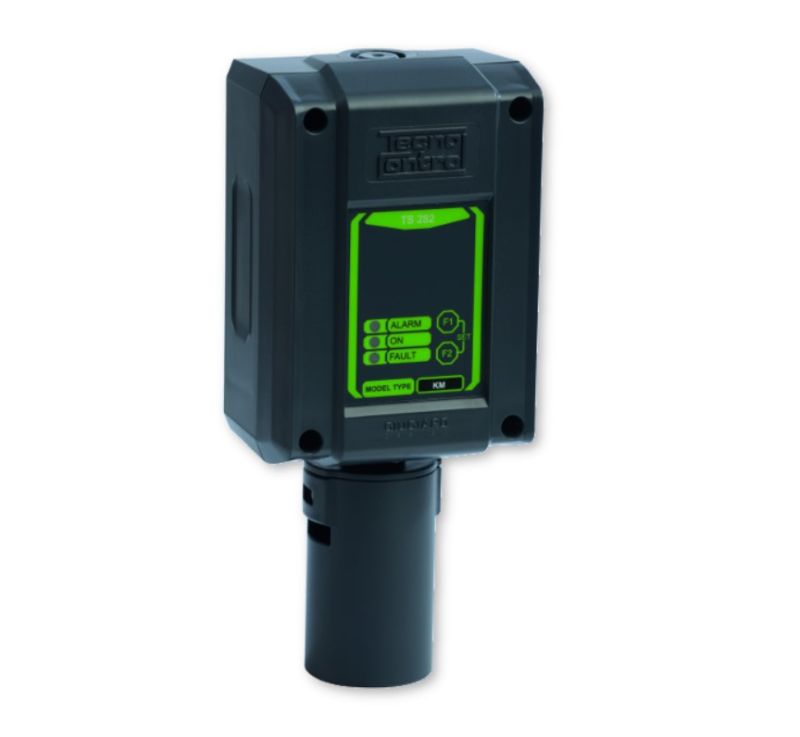

TECNOCONTROL TS282IC2-H 4-20mA infrared IP65 detector for CO2 - 0:5,000 ppm

MT Code: TCC_TS282IC2-H
Manufacturer Code: TS282IC2-H
Brand: TECNOCONTROL

Description

4-20mA infrared IP65 detector for CO2 - 0:5,000 ppm

• Power supply: 12 to 24 Vcc
• Degree of protection: IP65 (IP44 for SE136IC2 and TS210IC2) • No. 3 alarm relays.
MAX 24V/1A SPST resistive load (SE136IC2 only)
• No. 1 Fault Relay. MAX 24V/1A SPST resistive load (SE136IC2 only)
• Alarm levels (Relay) programmable via Dip-Switch (SE136IC2 only) • No. 1 linear output 4÷20 mA
• No. 5 LEDs show the operating status (red: alarm; green: power supply; yellow: fault)
• Polarized plug-in terminals

Gas Detected: Carbon Dioxide Replacement
cartridge: ZSIC2-H/IP
Measuring range: 0÷5000 ppm Calibration
cylinder: B0404 Average life in clean air: 5 years
