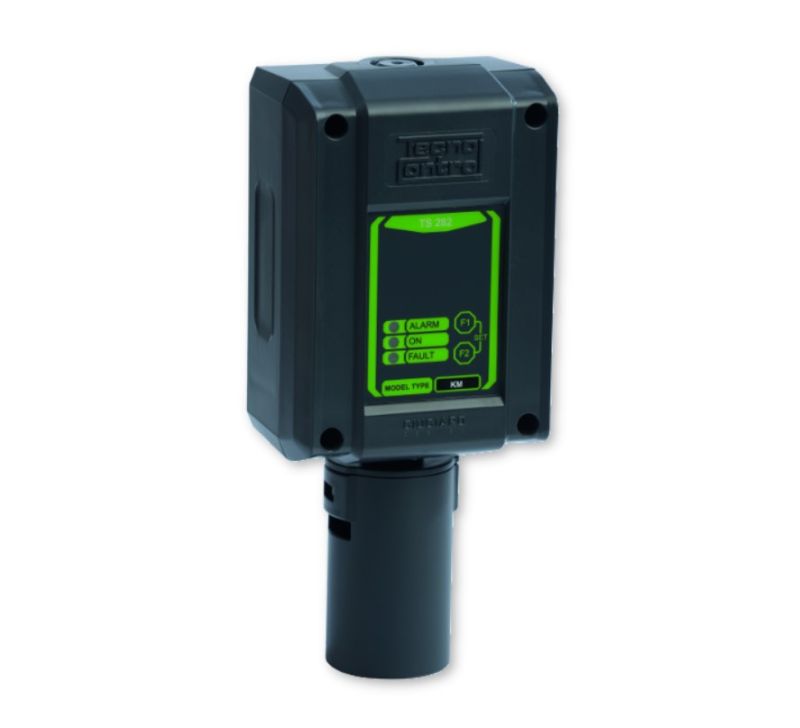

TECNOCONTROL TS282IC2 IP65 4-20mA infrared detector for CO2 - 0:5% Vol.

MT Code: TCC_TS282IC2
Manufacturer Code: TS282IC2
Brand: TECNOCONTROL

Description

IP65 4-20mA infrared detector for CO2 - 0:5% Vol.

• Power supply: 12÷24 Vcc
• Degree of protection: IP65 (IP44 for SE136IC2 and TS210IC2)
• No. 3 alarm relays. MAX 24V/1A SPST resistive load (SE136IC2 only)
• No. 1 fault relay. MAX 24V/1A SPST resistive load (SE136IC2 only)
• Alarm levels (Relay) programmable via Dip-Switch (SE136IC2 only)
• No. 1 linear output 4÷20 mA
• No. 5 LEDs show the operating status (red: alarm; green: power supply; yellow: fault)
• Polarized plug-in terminals

Detected Gas: Carbon Dioxide Replacement
cartridge: ZSIC2/IP Measuring
range: 0÷5% Vol.
Calibration cylinder: B0405 Average
life in clean air: 5 years

Data Sheet
