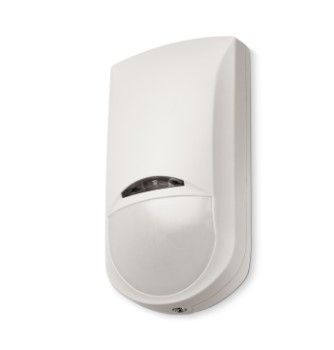

AVS ELECTRONICS 1131133 JET DT WS 4 Dual IR+MW technology sensor via two-way radio with anti-masking
- MT Code
- AVS_1131133
- Manufacturer Code
- 1131133
- Brand
- AVS ELECTRONICS


Fresnel lens infrared sensor and planar microwave programmable in AND with a range of up to 15 meters.
Complete with a look down lens for vertical detection under the sensor, anti-masking with active IR, accelerometer to detect the tear from the wall and immunity to animals up to 12 kg.
The new low-consumption technology, the intelligent microwave management and the lithium battery guarantee reliability and efficiency over time.
- Passive infrared with aspherical lens and look down mirror
- 10.525 GHz planar microwave range 15 meters
- IR coverage: 15 meters, 90° aperture, 7 planes and 41 sectors with sealed optics
- PET IMMUNITY
- Anti-masking with active IR, adjustable detection distance
- Accelerometer for tear and disorientation signaling
- Use: indoor
- Frequency: FM 868 MHz
- Multi frequency
- Bidirectional
- Radio range: up to 700 m in the open field
- Communication: alarm-tamper-battery-survival-sensor model-battery voltage
- Operating temperature
- Simplified programming: self-learning in the control unit
- Setting operating parameters directly from the control unit, PC or APP MY AVS MANAGER
- Power supply: 1 3.6 V 2.2 Ah lithium battery
- Autonomy: 2 years by activating the reduced consumption function
- Dimensions (LxHxD): 65 x 120 x 39 mm
- Compatibility: RAPTOR control panels, XSAT WS4
Codice Produttore | 1131133 |
---|---|
Brand | AVS ELECTRONICS |
